MKH 800 TWIN

Specifications

Frequency response

  • 30 - 50,000 Hz

Pick-up pattern

  • 2x cardioid

Sensitivity (free field, no load) (1 kHz)

  • 40 mV/PA ±1 dB

Nominal impedance

  • 100 Ω

Min. terminating impedance

  • 2 kΩ

Max. SPL

  • 136 dB SPL / 1 kHz

Max. output voltage

  • 4 V
Equivalent noise level
  • A-weighted: approx. 12 dB
  • CCIR-weighted: approx. 20 dB
Noise voltage
  • A-weighted: 3 μV
  • CCIR-weighted: 8 μV
Dynamic range
  • A-weighted: 122 dB
  • CCIR-weighted: 114 dB
Power supply
  • 48 V ±4 V
Current consumption
  • 2x 3.1 mA

Dimensions

  • Ø 27 x 136 mm

Weight

  • 172 g

Temperature range

  • Storage: -20 °C to +70 °C
Connector
  • XLR-5M

Connector assignment



1 Ground/housing
2 Front channel: (+)
3 Front channel: (-)
4 Rear channel: (+)
5 Rear channel: (-)

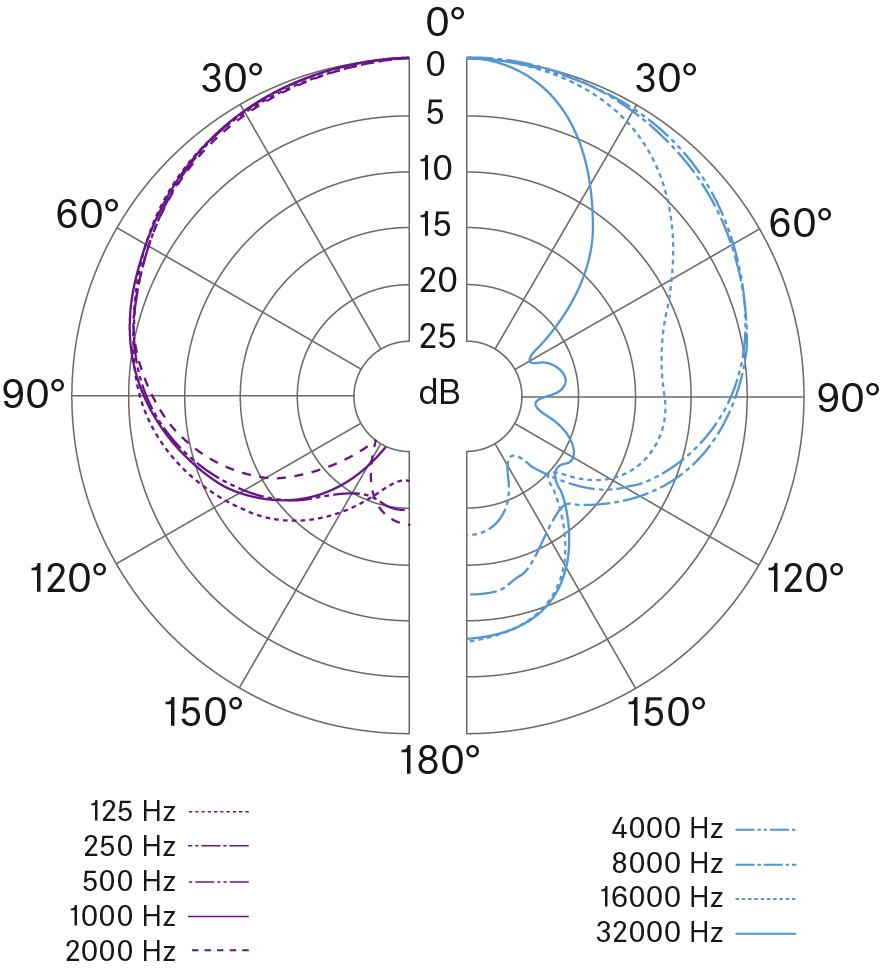

Polar pattern

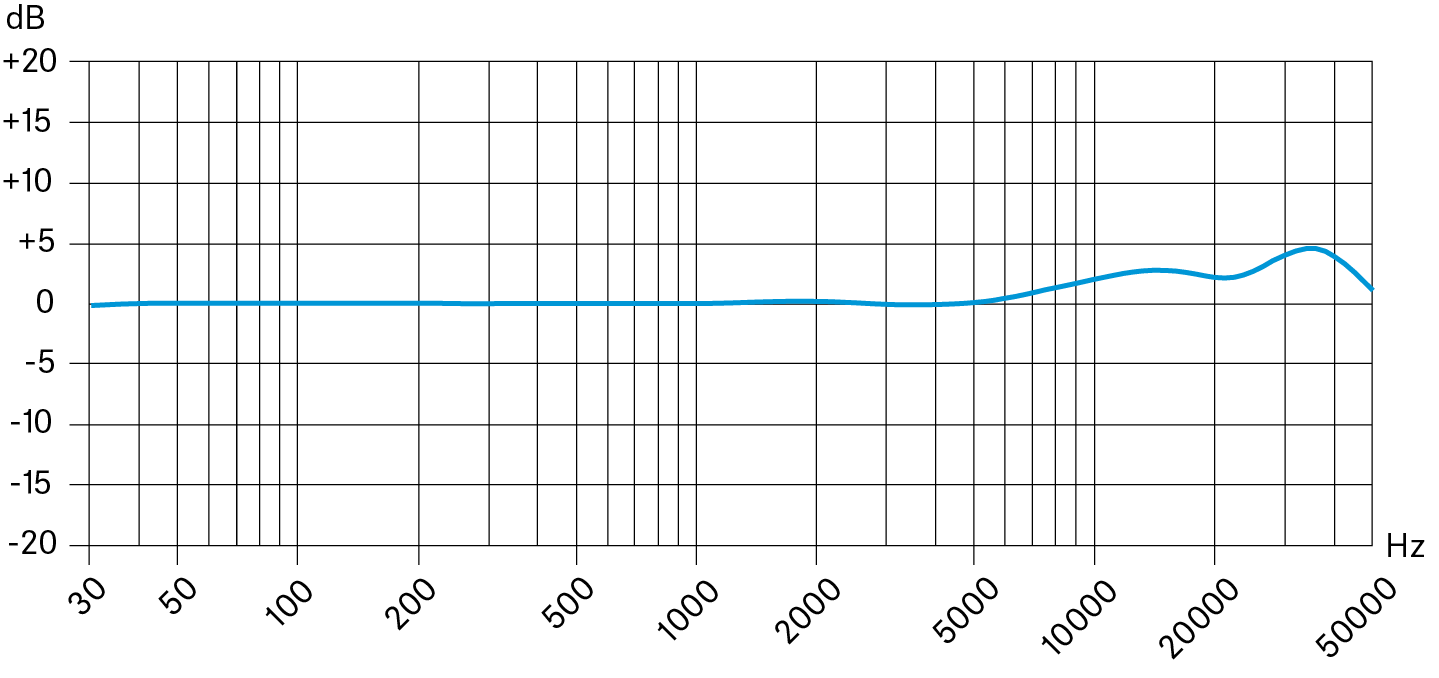

Frequency response
