Operation

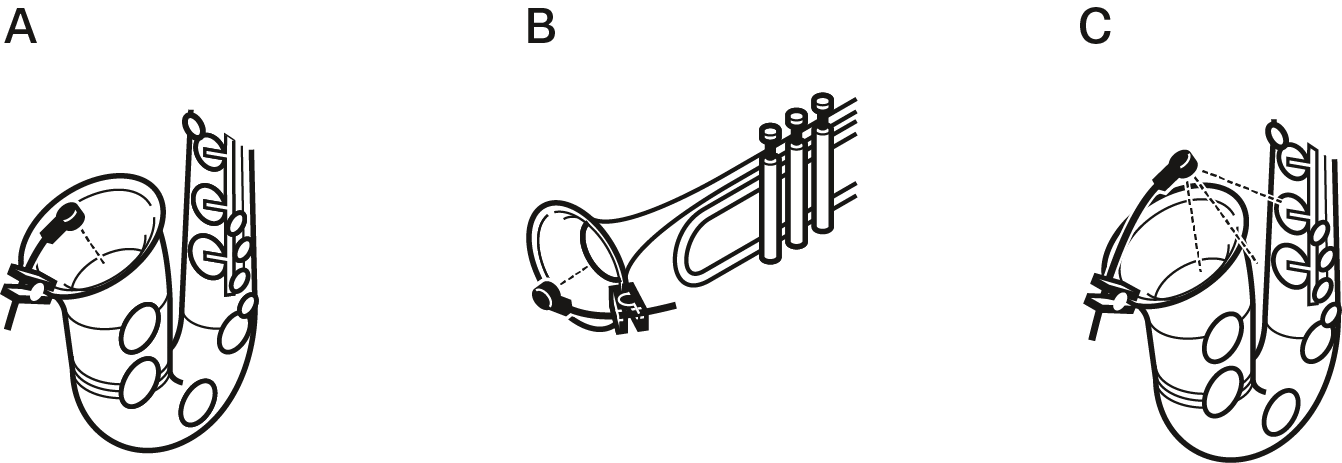

Positioning the microphone on a wind instrument
  1. Use the microphone clamp MZH 908 B to attach the microphone to the bell of the instrument.
  2. It is vital to observe the following notes:
    • Position A and B: Directed into the bell of the instrument.
      • Resulting sound A: Reduced ambient noise
      • Resulting sound B: Clear, powerful sound
    • Position C: Directed partly towards the bell and partly towards the body of the instrument.
      • Resulting sound: Balanced, natural sound

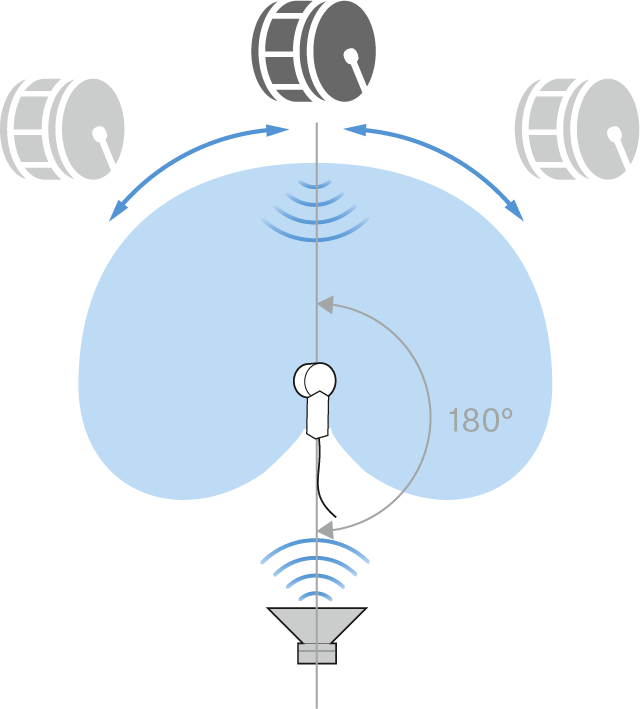

Positioning the monitor loudspeakers
  1. To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 180°, see Polar pattern).
