Installation

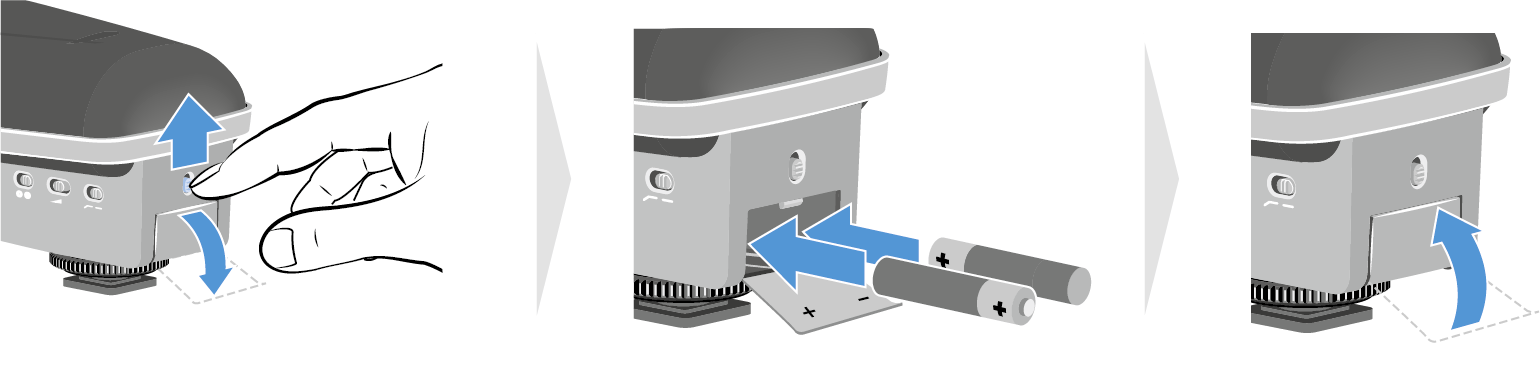

To insert the batteries:
  1. Push the catch of the battery compartment up.
    The compartment opens up.
  2. Insert the batteries as shown in the diagram. Observe correct polarity when inserting the battery.

  3. Close the battery compartment.

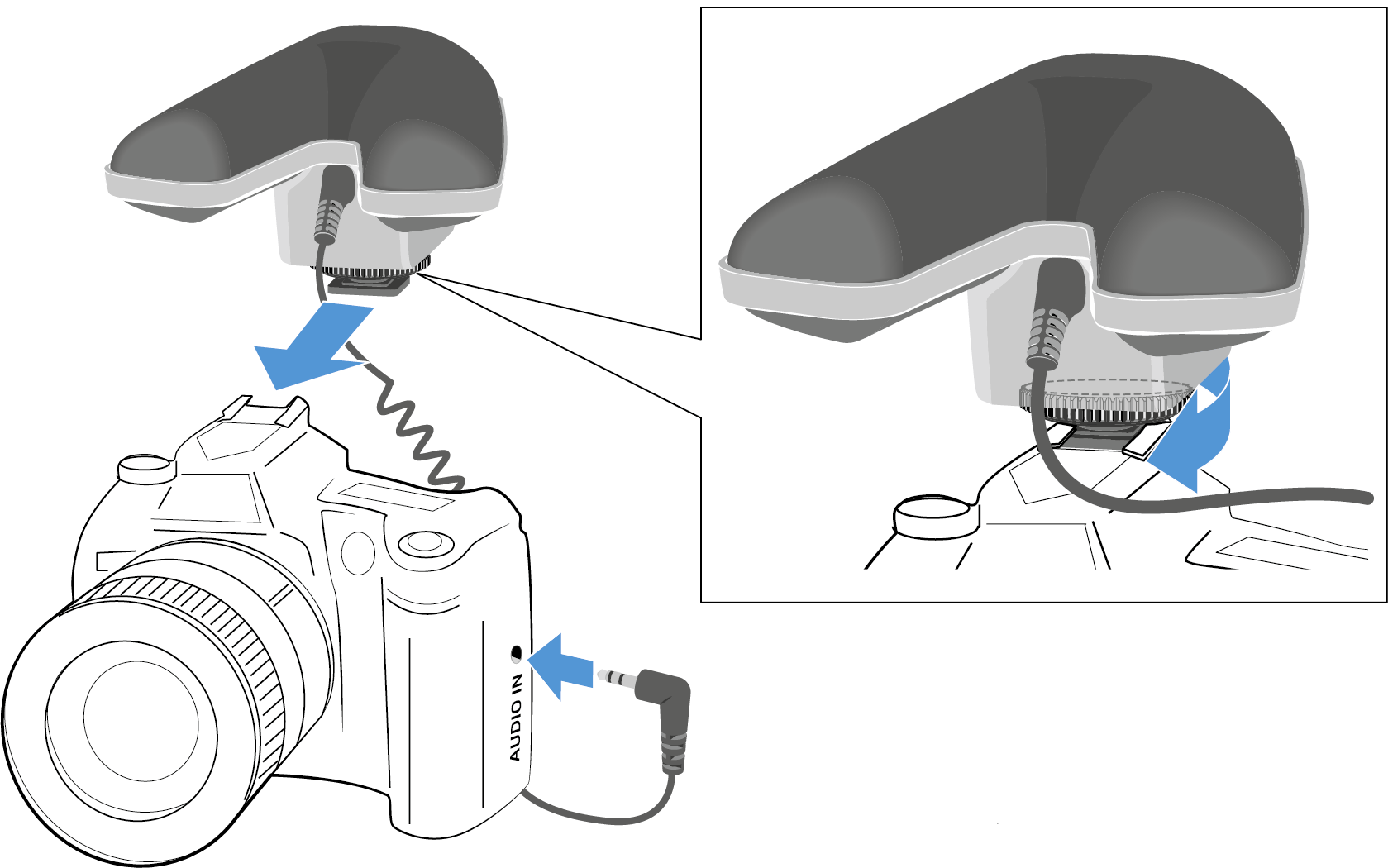

To connect the microphone to the camera:
  1. Slide the microphone into the camera’s hot shoe and tighten the knurled wheel.
  2. Insert the other plug of the camera cable into the Audio IN jack on the camera.
