Microphone system
When operating both monitoring and microphone systems via the WSM, you first have to perform the frequency presetscan for the monitoring system (see Monitoring system).

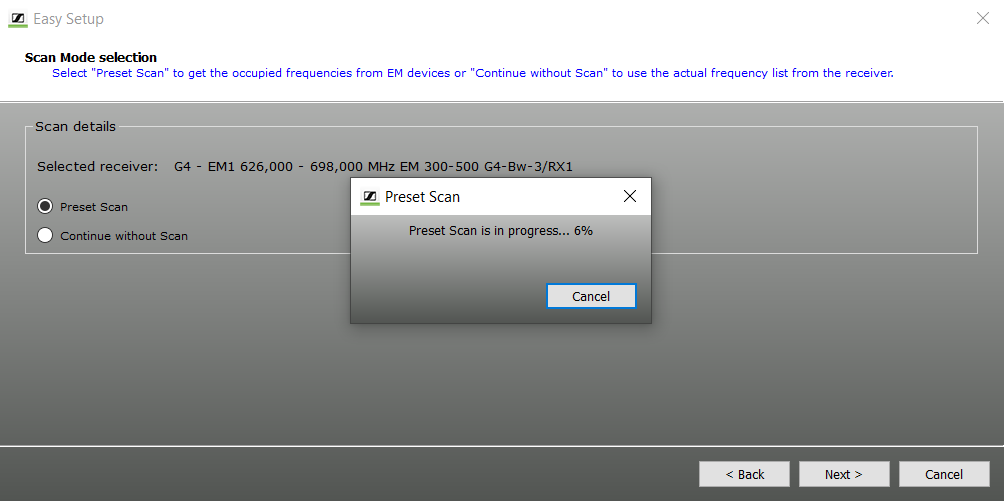

Performing a frequency presetscan
The frequency presetscan is always performed for all frequencies in the selected channel bank.
Allocating frequencies without a frequency presetscan
When you allocate frequencies without a frequency presetscan, interference with transmitters in the vicinity of the system may result.

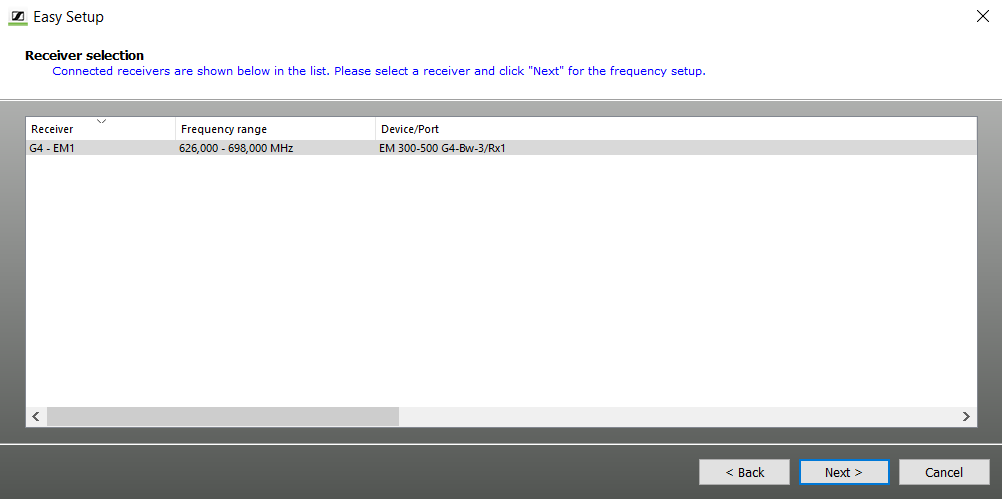

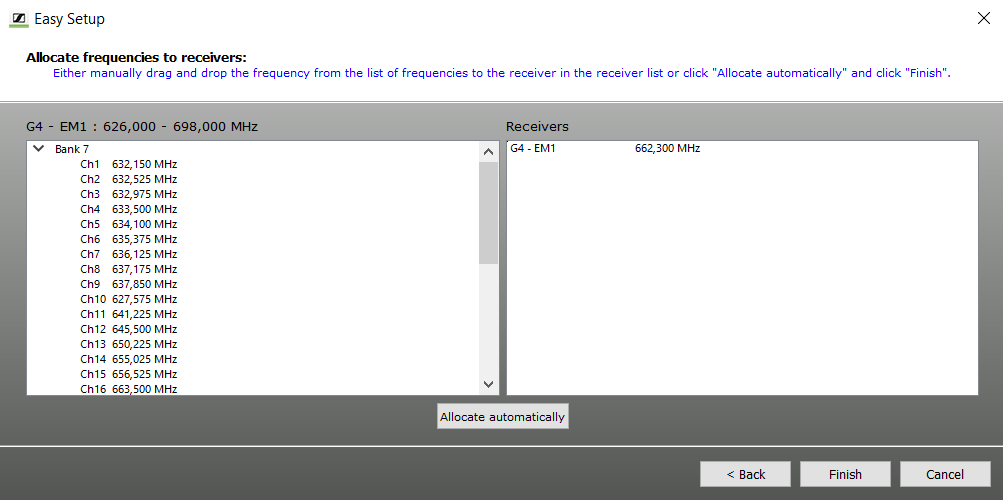

Allocating frequencies to stationary receivers
You can allocate frequencies automatically or manually.
- Automatic allocation:
If you have connected more receivers from one frequency range than free channels are available in one channel bank, the WSM re-assigns the last frequency assigned several times.
- Manual allocation:
You can assign the same frequency to several receivers.
