Planning the installation
Detailed installation instructions can be found in the section Installation and startup.
Possible installation variants

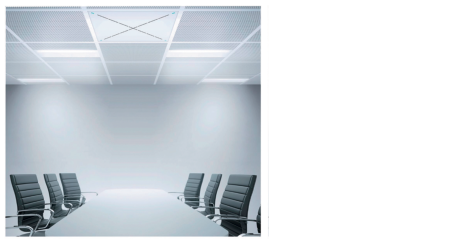

Variant 1: installed flush in a dropped/coffered ceiling
Accessories required:
Accessories required:
- Angle brackets
- SL CM EB US (590 mm to 2 ft) or
- SL CM EB 625 (590 mm to 625 mm)
Adapting the installation height
Observe the following minimum and maximum distances when installing the TeamConnect Ceiling.
The recommended maximum distance from the speaker to the TeamConnect Ceiling 2 is 4 to 5 m.
The minimum distance from the TeamConnect Ceiling 2 to the floor is 2.50 m.

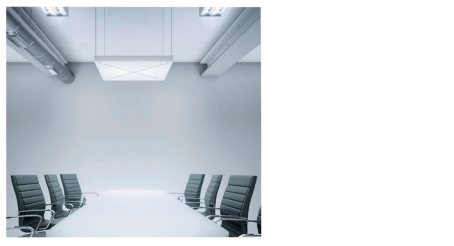

If installation variants 1 or 2 would result in a distance greater than the recommended maximum due to the room height, we recommend installation variant 3.
Recommended distances for variants 1 and 2:
Recommended distances for variant 3:
