  The TeamConnect Bar (TC Bar) is an all-in-one conference system for small to medium-sized meeting rooms.
- Mounting options
  This chapter provides you with an overview of the available options for mounting the TC Bar.
- Connectivity
  The TC Bar features numerous connections and connection interfaces.
  - Cable connections
    Cable connections enable a direct connection between the TC Bar and the far end or networking with an existing network topology.
  - Supported PoE (Power over Ethernet) standards
    Power over Ethernet (PoE) is a network function that can supply network-capable devices with power through an existing data connection.
  - Wireless connections
    The TC Bar has wireless interfaces such as Bluetooth® that allow it to connect with known networks or devices capable of Bluetooth®.
- Operating modes
  The TC Bar can be used either as a stand-alone solution in the meeting room or as a networked conference system in an existing network structure.
- Network configuration
  You can configure different network modes for the TC Bar using the control software Sennheiser Control Cockpit and thus adapt the device to the existing network structure.
- Dante® features
  With the integrated Dante® Embedded Platform (DEP), the TC Bar enables integration of media and control over the entire AV system via a single IP network.
- Enhanced audio and video coverage
  The TC Bar is an audio and video conference system that can be used not only as an independent stand-alone solution but also as a unit in a networked system via the Sennheiser Control Cockpit software.
- Status information about energy consumption
  According to the ecological design requirements of Directive 2009/125/EC on products relevant to energy consumption, the TC Bar complies with the following standard(s) or document(s): Commission Regulation (EU) 2023/826.
- Third-party access
  You can enable third-party access in the Control Cockpit to operate the TC Bar via an API.
- Licenses
  All valid licenses for the product TeamConnect Bar.

Cable connections

Cable connections enable a direct connection between the TC Bar and the far end or networking with an existing network topology.

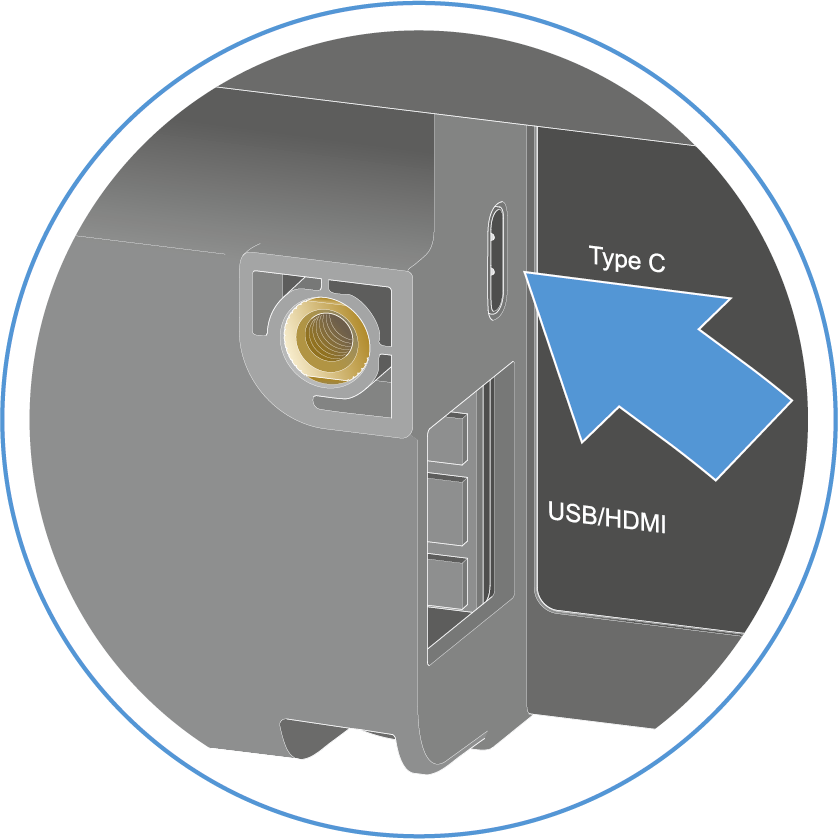

USB-C®


	The USB-C® connection is available as the primary interface between the TC Bar and the device used. It can be used to directly connect a conference-capable device (e.g., PC, laptop, etc.) with the TC Bar and operate it (see Connecting the TC Bar to a device (stand-alone solution)).

USB-A


	The USB-A connection serves to connect an external PTZ camera (pan tilt zoom) to the TC Bar (see Connecting an external PTZ camera).

HDMI®™


	The HDMI® connection serves to transmit outgoing video signals from the TC Bar to an external screen (see Connecting the TC Bar to an external screen (optional)).

Ethernet RJ45


	The Ethernet connection (RJ45) serves primarily as a remote connection for claiming, controlling and monitoring the TC Bar via the Sennheiser Control Cockpit software. Furthermore, the RJ45 connection serves as a PoE (Power over Ethernet) connection for alternative power supply for the TC Bar S. When the Audinate Dante® system is used, the PoE+ (PD) connection of the TC Bar S or the RJ45 connection of the TC Bar M can be used to connect the TC Bar with the Dante controller and operate it via a separate Dante® network (see Network configuration).
