Placing on a stand

The thread is suitable for mounting on a standard microphone stand with 3/8" or 5/8" thread.

Handle with care: The antenna contains electrical components.

CAUTION

Personal injury and damage to property if the antennae should tip or fall over

If you do not secure the antennae against tipping or falling over, they may cause personal injury and damage to property.

Secure antennae so that they cannot tip and fall over. Use safety wires for this purpose. The safety wires, rope terminations and coupling links must comply in their dimensioning and condition with the regulations and standards of the country in which they are used!

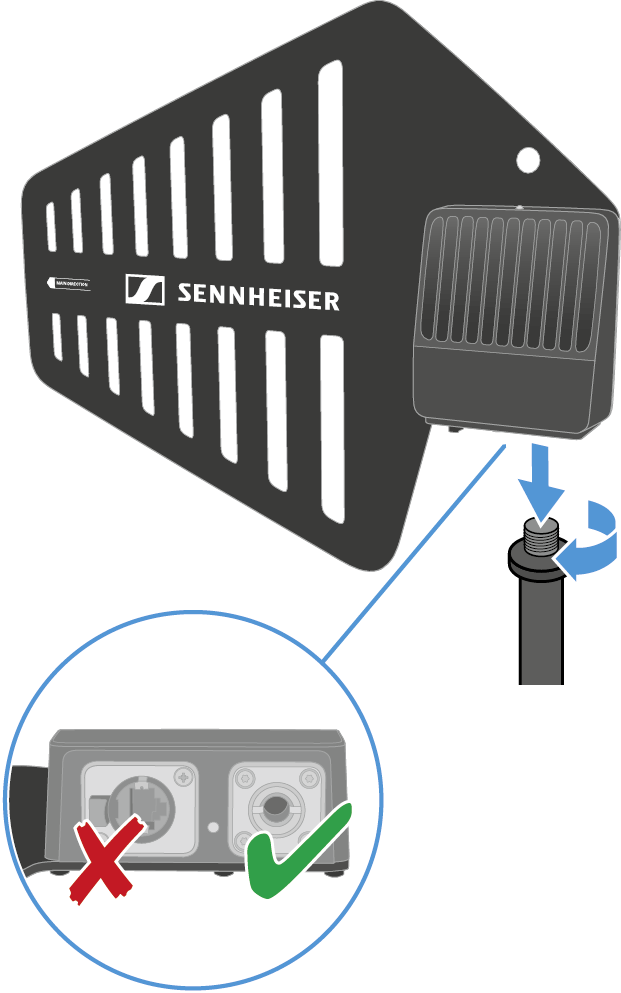

To place the DAD on a stand:

Screw the DAD to the stand.
Make sure to use the correct hole!

The DAD has been placed on a stand.
