Mounting the receiver on the wall

To mount the receiver on the wall, you will need the mounting frame supplied.

Screws and anchors for mounting the product to the wall are not included with delivery. Use screws and anchors that are appropriate for the particular characteristics of your wall.

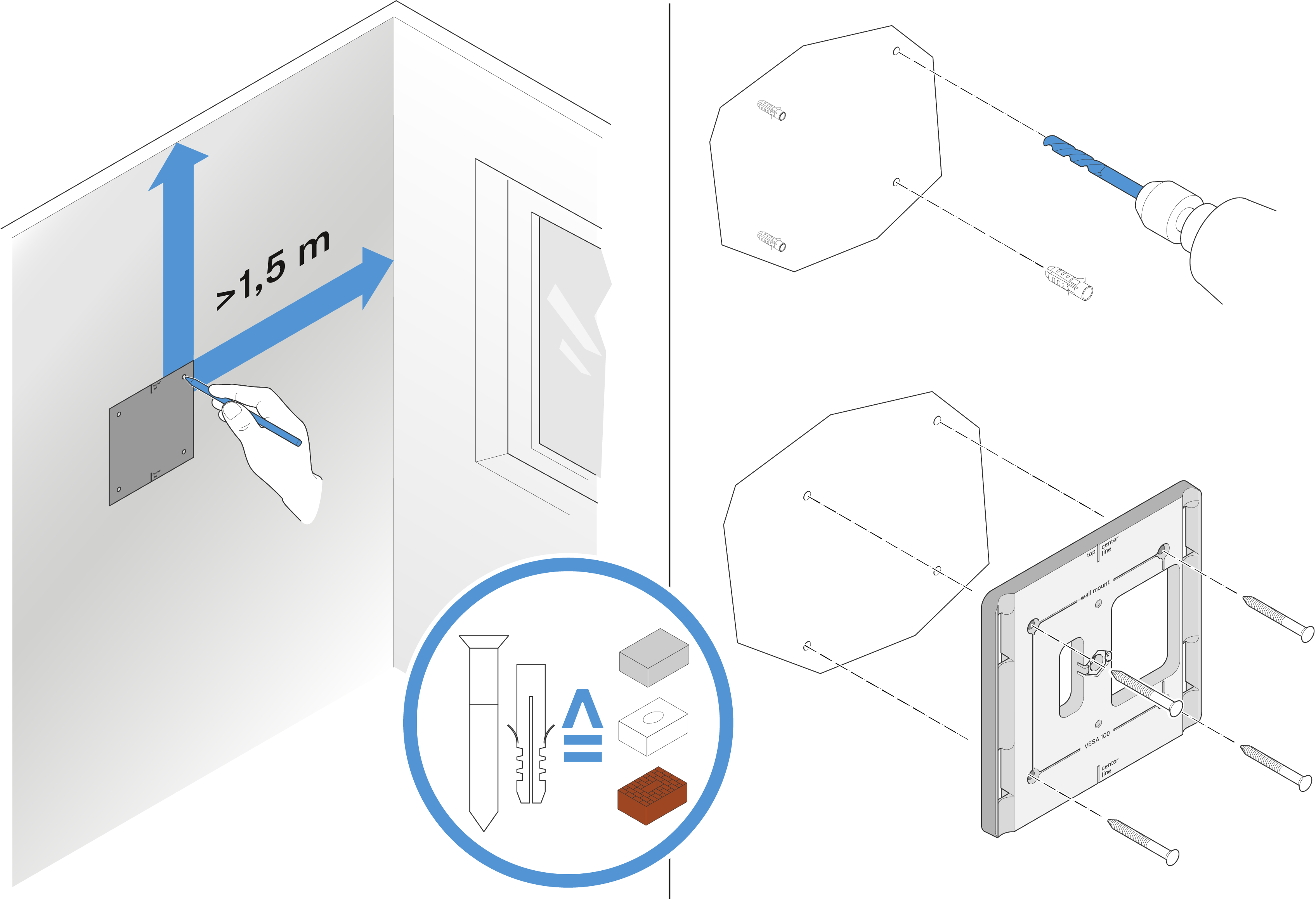

  1. Use the included drilling template to mark the drill holes for wall mounting.
  2. Maintain a minimum distance of 1.5 m from other walls and the ceiling.
  3. Screw the mounting frame to the wall using four suitable screws and anchors.

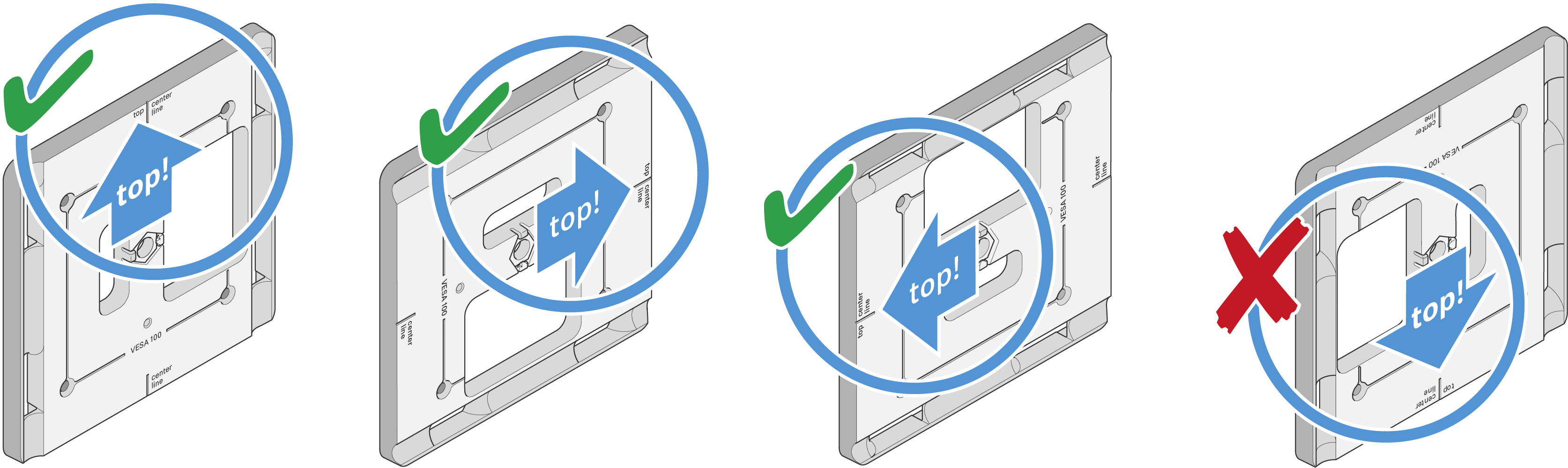

  4. Make sure that the mounting frame is aligned correctly.

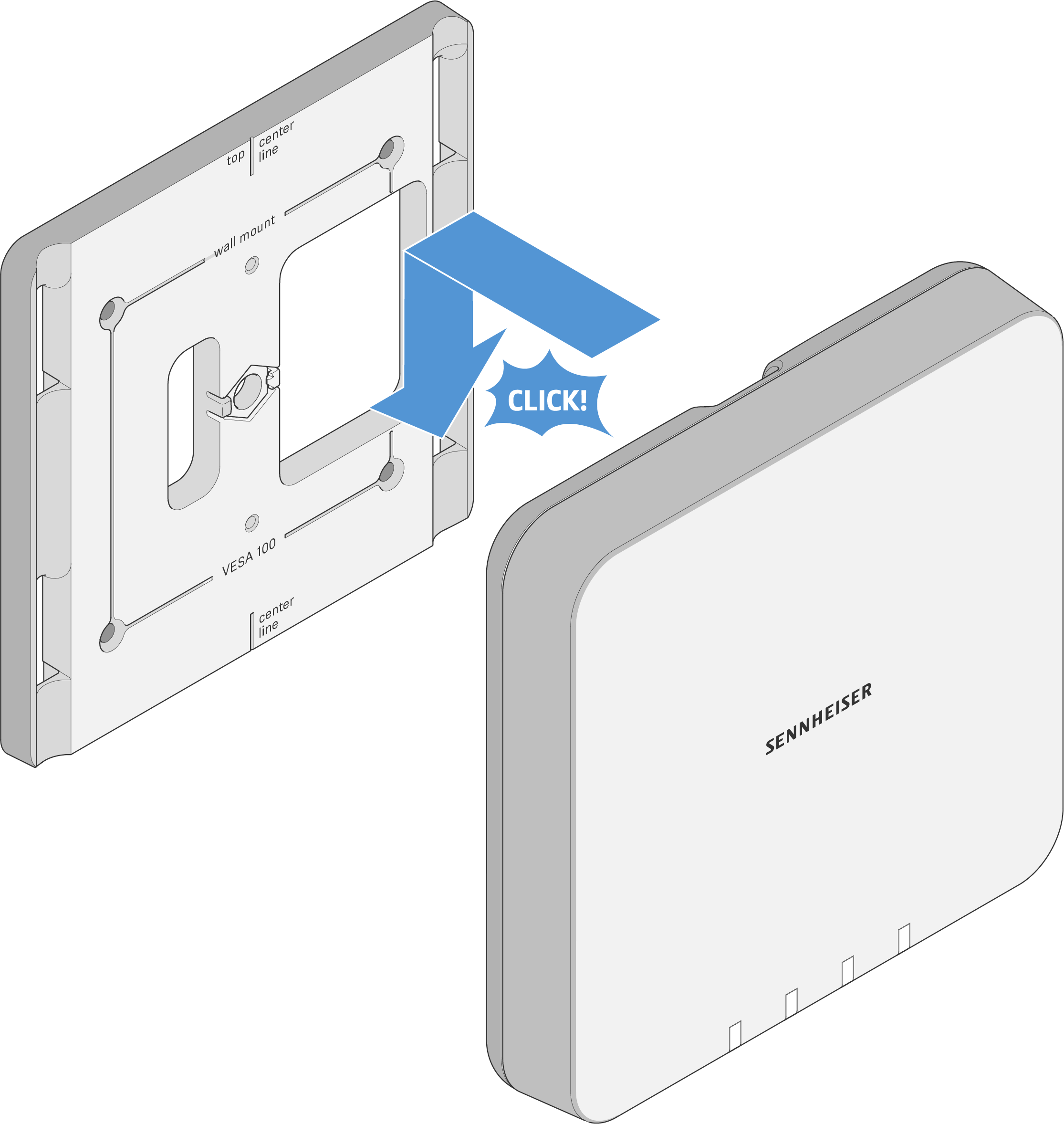

  5. Insert the receiver into the mounting frame as shown until you hear it click into place.
