Using the handheld transmitter

The handheld transmitter is available with or without the MME 865-1 microphone capsule. The MME 865-1 has a pre-polarized condenser microphone capsule with super-cardioid pick-up patterns.



  1. The microphone capsule can be unscrewed and replaced by one with a different pick-up pattern.
    If you touch the antenna of the handheld transmitter during transmission, the transmission range will be considerably reduced. If you cover the microphone capsule during transmission, this will change the pick-up pattern of the microphone and consequently the sound.

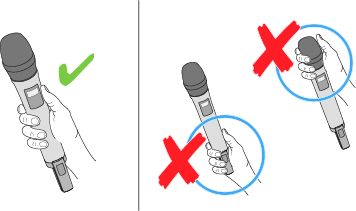

  2. Only hold the handheld transmitter by its body.

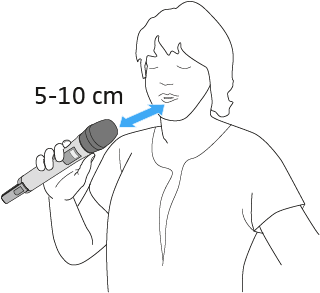

  3. Hold the handheld transmitter approx. 5 to 10 cm in front of your mouth.
The MME 865-1 microphone capsule has a super-cardioid pick-up pattern.
  1. Hold the handheld transmitter vertically and speak into the sound inlet basket from directly above.
