Operation

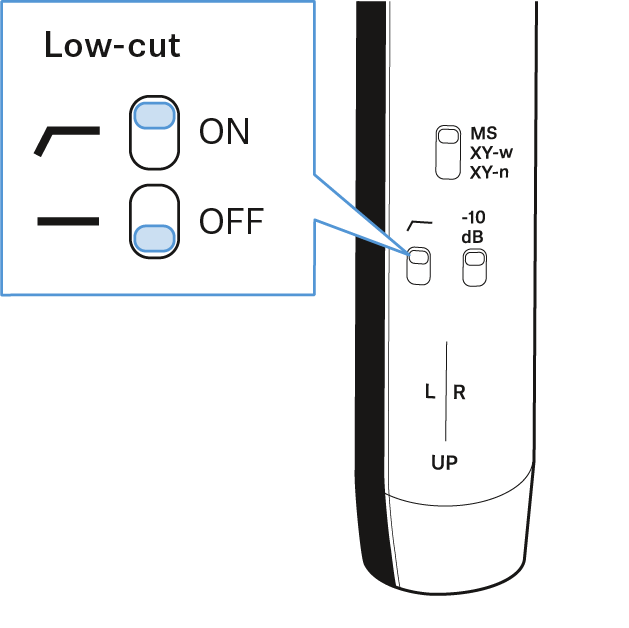

Adjust low-cut

Slide the switch to the desired position: ON or OFF.

Reduction of low-frequency noises (e. g. wind- and handling noises) by 3 dB at 70 Hz.

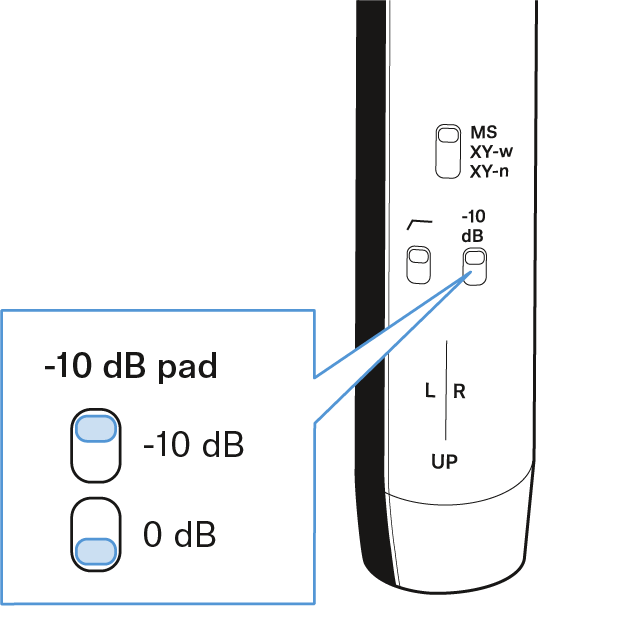

Adjust attenuation

Note:

Attenuation of the signal level to protect against clipping with very loud signals.

Slide the switch to the desired position: -10 dB oder 0 dB.

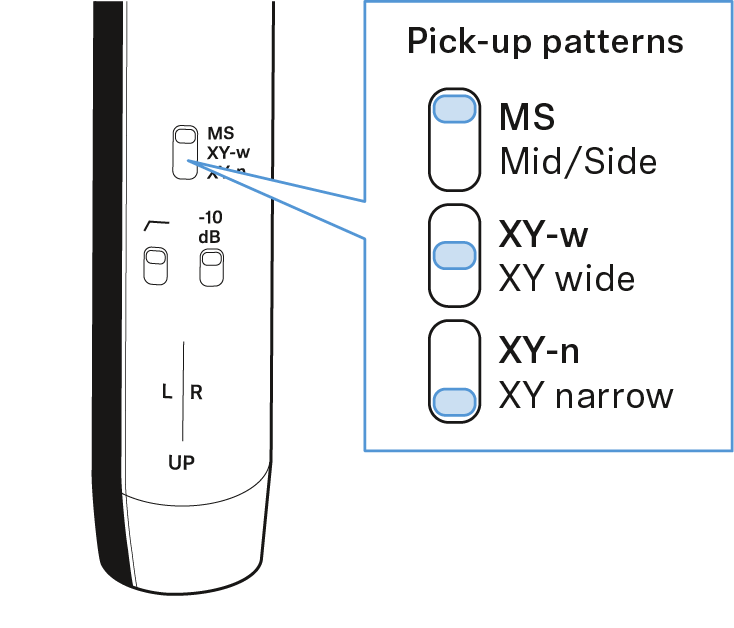

Adjust the pick-up pattern

Slide the switch to the desired position: MS (Mid/Side), XY-w (wide) or XY-n (narrow).
