MKH 8090

Specifications

Pick-up pattern

  • Wide Cardioid

Frequency response

  • 30 - 50,000 Hz

Sensitivity

  • -34 dBV/Pa (20 mV/Pa)
  • -44 dBV/Pa (6.3 mV/Pa) with MZF 8000 II filter module

Sound pressure level limit

  • 142 dB SPL with and without MZF 8000 II filter module

Equivalent noise level

  • A-weighted: 13 dB(A)
  • CCIR-weighted: 23 dB

Rated impedance

  • 25 Ω

Min. terminating impedance

  • 2 kΩ

Phantom powering

  • 48 V ± 4 V (P48, IEC 61938)

Power consumption

  • 3.3 mA

Diameter

  • approx. 19 mm

Length

  • approx. 41 mm
  • approx. 75 mm with XLR-Modul MZX 8000

Weight

  • approx. 25 g
  • approx. 55 g with XLR-Modul MZX 8000

Temperature range

  • -10 °C to +60 °C

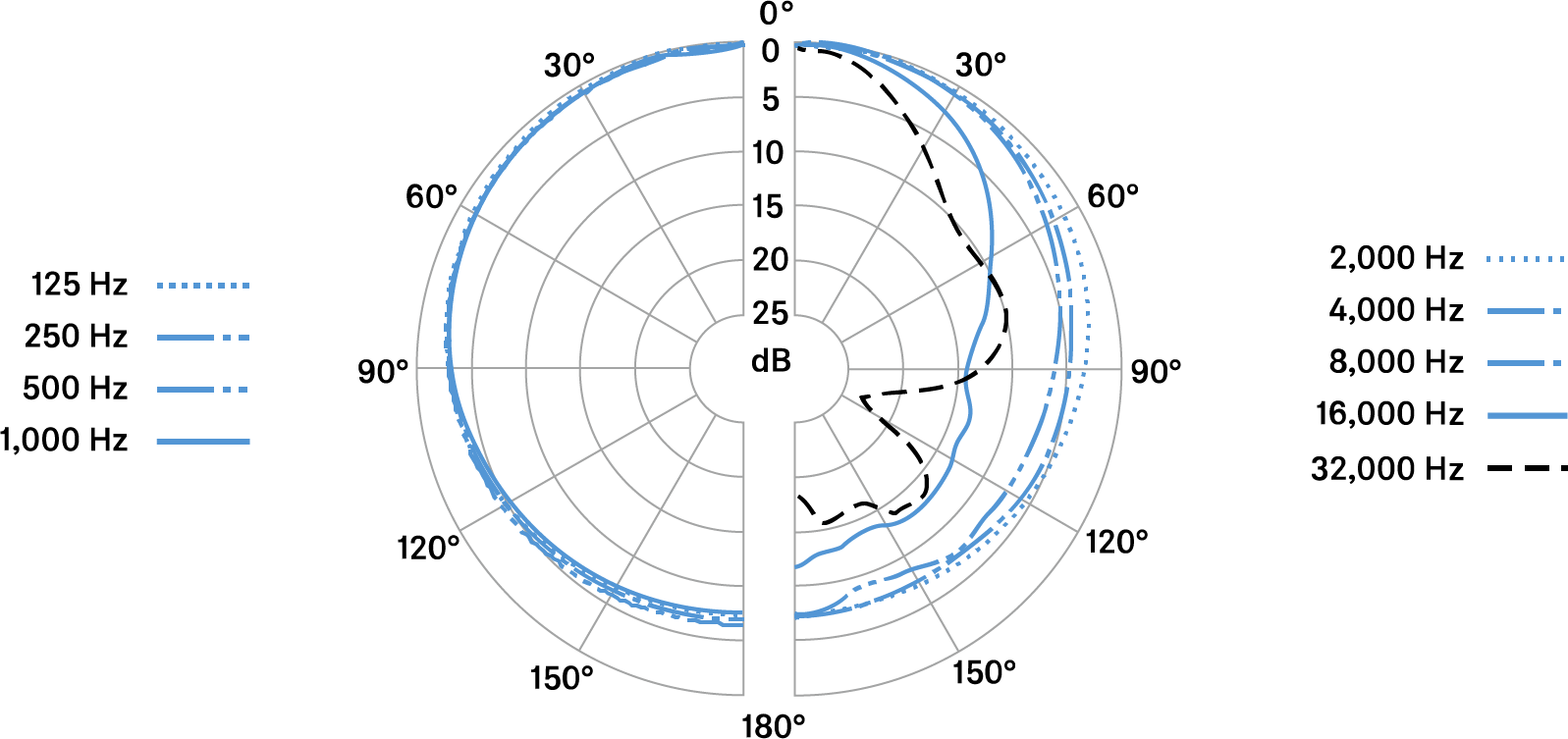

Polar pattern

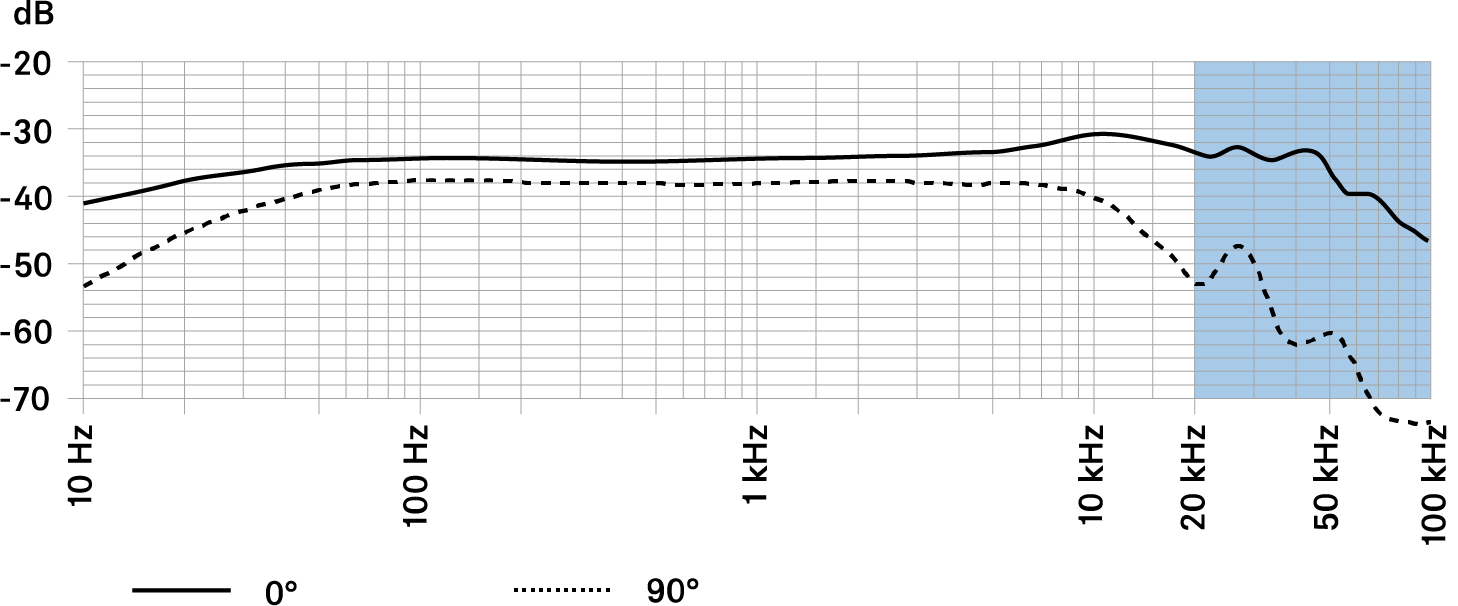

Frequency response
