MKH 8030

Specifications

Pick-up pattern

  • Figure-of-eight

Frequency response

  • 30 - 50,000 Hz

Sensitivity

  • -31 dBV/Pa (31 mV/Pa)

Sound pressure level limit

  • 139 dB SPL

Equivalent noise level

  • A-weighted: 13 dB(A)
  • CCIR-weighted: 21 dB

Phantom powering

  • 48 V ± 4 V (P48, IEC 61938)

Power consumption

  • 3.3 mA

Diameter

  • approx. 19 mm, max. 21 mm

Length

  • approx. 59 mm
  • approx. 93 mm with XLR-Modul MZX 8000

Weight

  • approx. 38 g
  • approx. 70 g with XLR-Modul MZX 8000

Temperature range

  • -10 °C to +60 °C

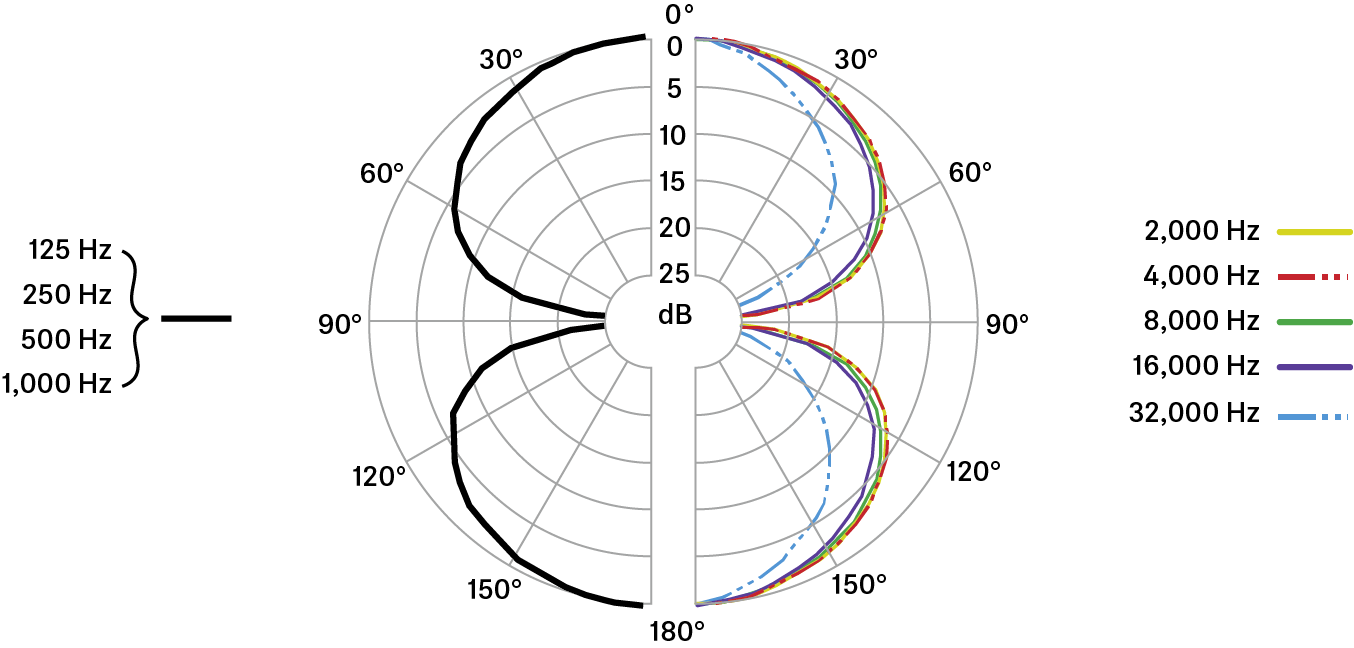

Polar pattern

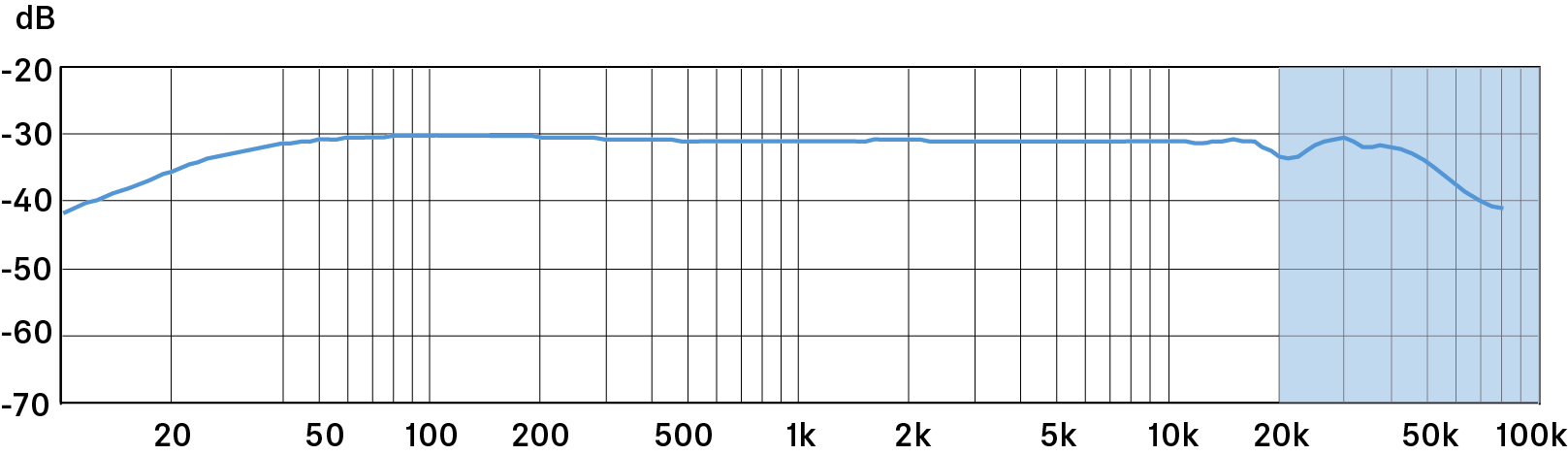

Frequency response
