Operation

Meaning of the LED
LED Internal battery power
lights up red for approx. 1 second after switch-on and then goes off switched on; operating time: up to approx. 150 h
lights up red permanently “Low Batt”, battery is almost empty; approx. 8 h of remaining operating time after initial display
flashes briefly red on switch-on battery is empty; the microphone is not operational

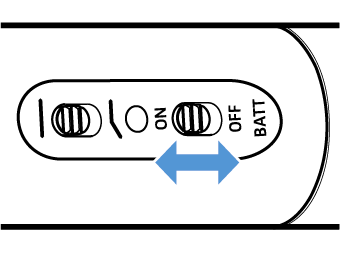

To switch the microphone on and off (only battery powering):
  1. Set the switch to the desired position.

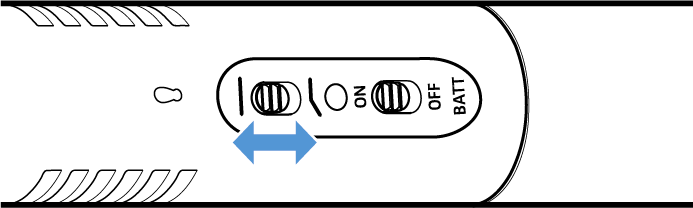

To use Low Cut:
  1. Set the Low Cut switch to the desired position.

    Switch position Frequency response of the microphone
    linear frequency response
    frequencies below 100 Hz are attenuated to reduce wind and impact noise
