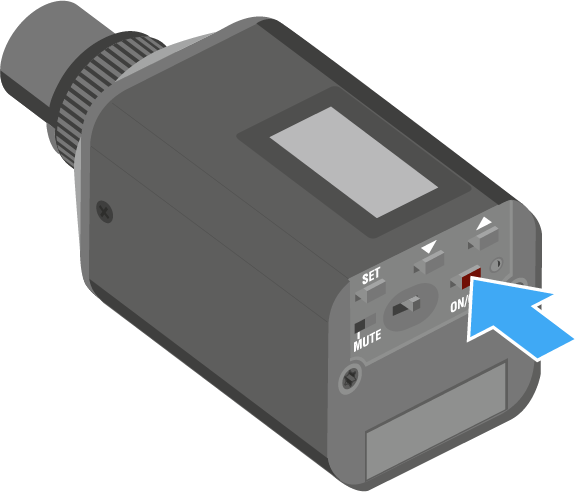

Switching the plug-on transmitter on and off

To switch on the plug-on transmitter:

Hold down the ON/OFF button until the Sennheiser logo appears on the display.

To switch off the plug-on transmitter:

Hold down the ON/OFF button until the display goes off.
