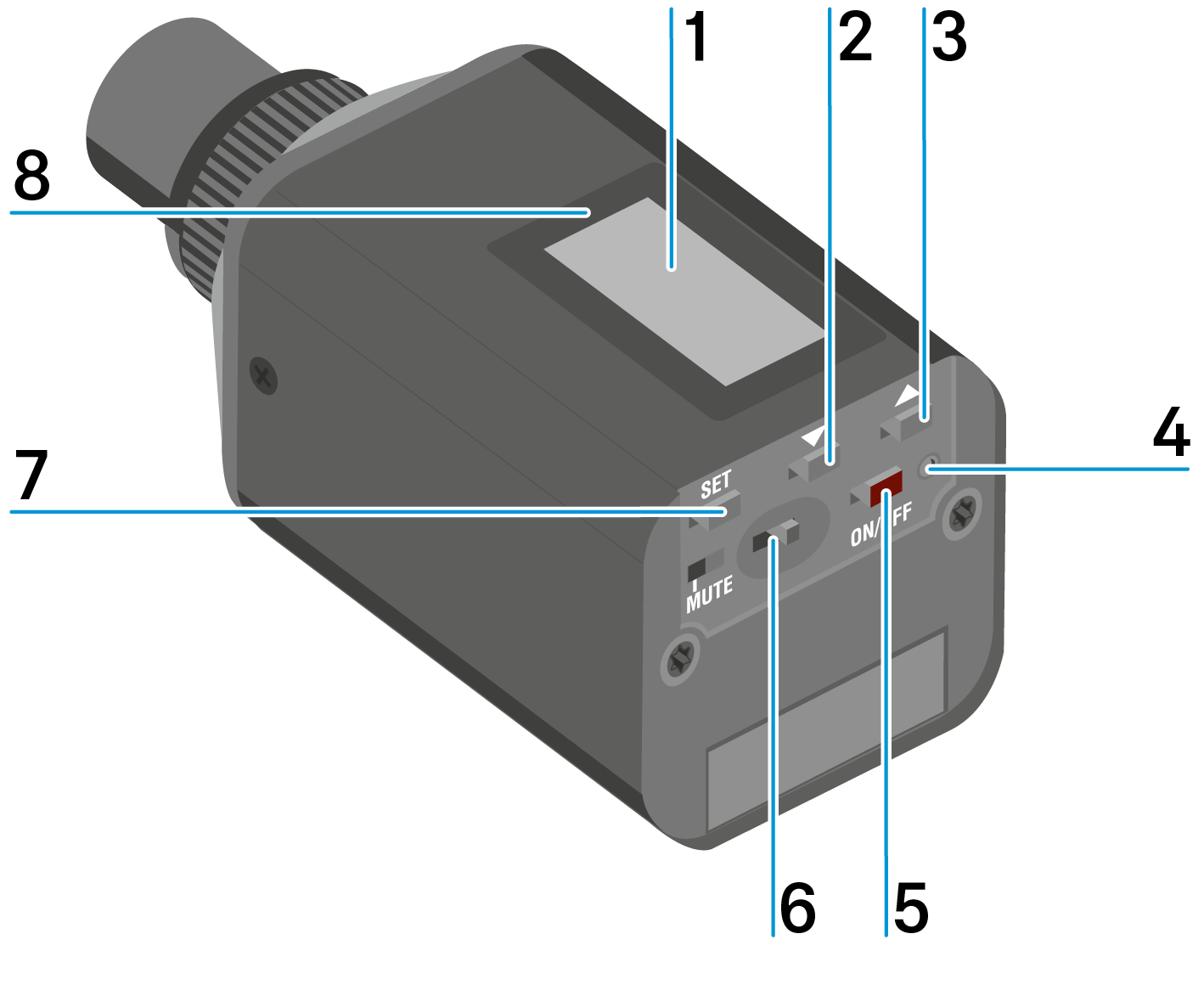

Product overview


1	Display panel see Displays on the plug-on transmitter display panel
2	DOWN button see Buttons for navigating the menu
3	UP button see Buttons for navigating the menu
4	Operation and battery indicator, red LED illuminated = ON, see Switching the plug-on transmitter on and off flashing = LOW BATTERY, see Inserting and removing the batteries/rechargeable batteries
5	ON/OFF button with ESC function in the operating menu Switch the transmitter on or off, see Switching the plug-on transmitter on and off Escape function in the menu, see Buttons for navigating the menu
6	MUTE switch see Muting the plug-on transmitter (AF mute)
7	SET button see Buttons for navigating the menu
8	Infra-red interface see Ew 100 P G4 synchronizing
