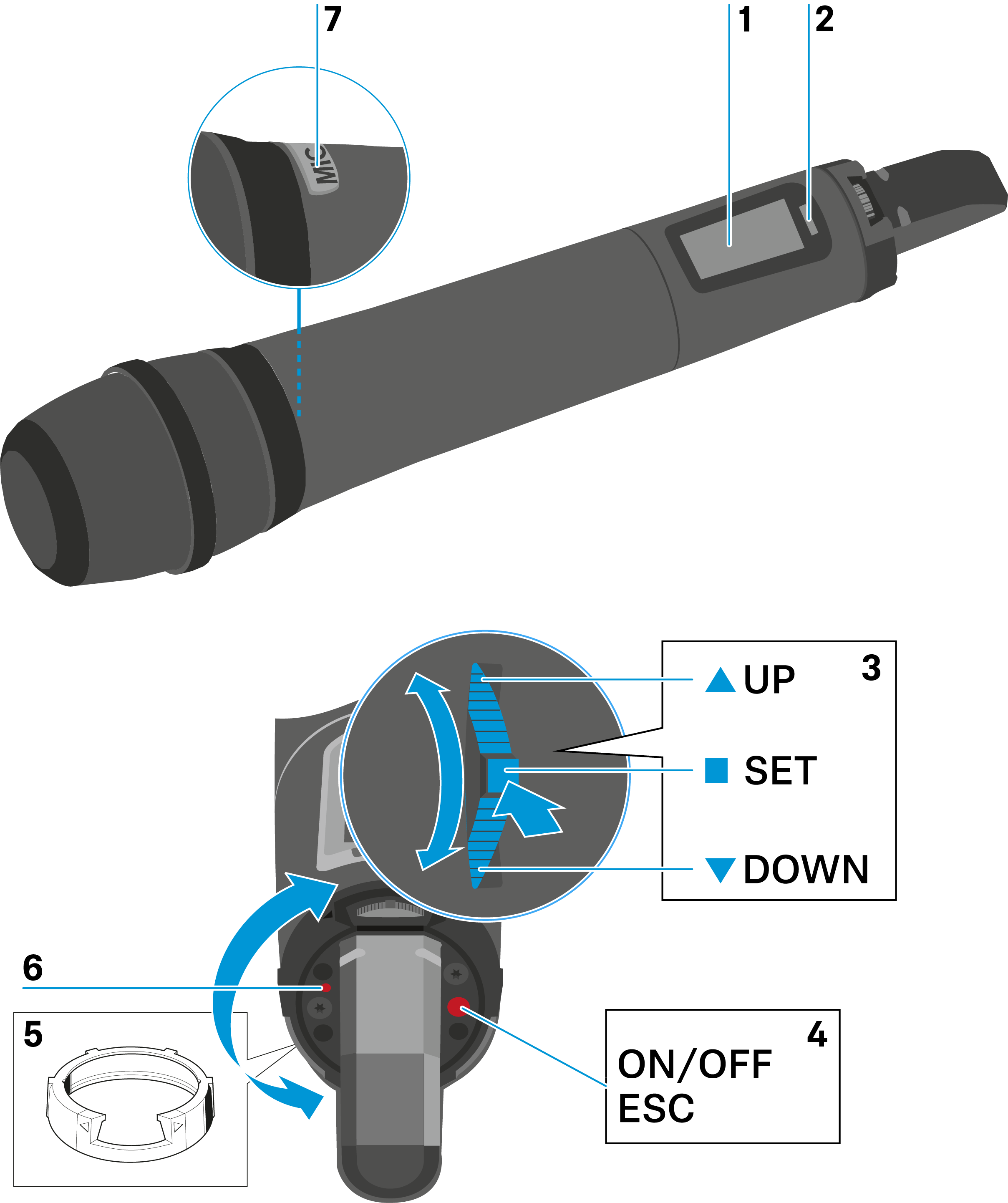

Product overview


1	Display panel see Displays on the handheld transmitter display panel
2	Infra-red interface see Ew 300-500 G4 synchronizing
3	DOWN, UP and SET multi-function switch see Buttons for navigating the menu
4	ON/OFF button with ESC function in the operating menu Switch the transmitter on or off, see Switching the handheld transmitter on and off Escape function in the menu, see Buttons for navigating the menu Deactivating the RF signal, see Deactivating the RF signal (RF mute)
5	Colored ring Available in different colors, see KEN 2 Color labeling set and Changing the colored ring Can be turned to protect the multi-function switch
6	Operation and battery indicator, red LED illuminated = ON, see Switching the handheld transmitter on and off flashing = LOW BATTERY, see Inserting and removing the batteries/rechargeable batteries
7	MIC button (only SKM 300 G4-S) see Muting the handheld transmitter (AF mute) see Deactivating the RF signal (RF mute) see Advanced > Mute Mode menu item
