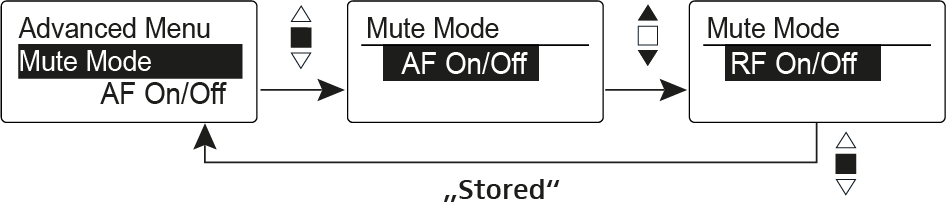

Advanced > Mute Mode menu item

Configuring the function of the MIC button

AF On/Off mode

When you press the MIC button, no audio signal is transmitted.

RF On/Off mode

When you press the MIC button, the RF signal is deactivated.

Push To Mute mode

e audio signal is deactivated as long as you press down the MIC button.

Push To Talk mode

The audio signal is activated as long as you press down the MIC button.
The wireless microphone is muted when you configure the Push to Talk function.

Disabled mode

No function

You can find information about the MIC button under Muting the handheld transmitter (AF mute) and Deactivating the RF signal (RF mute).
