Advanced > Tune menu item

Configuring the transmission frequency and frequency bank U

When you have configured the wireless microphone to a system bank and you call up the Tune menu item, channel 1 of the frequency bank U is automatically set. The message U.1 briefly appears in the display. In the factory settings, the channels of the frequency bank U are not assigned to any transmission frequency.

While you work in the Tune menu, the RF signal is deactivated.

You can configure a transmission frequency for the current channel or select a channel in the frequency bank U and configure a transmission frequency for this channel in the Tune menu. Be sure to note the information on frequency selection, see Establishing a radio link.

To configure the transmission frequency for the current channel:

Open the Tune menu item in the Advanced menu.
The frequency selection appears.
Configure the desired frequency.
Press the multi-function switch.
Your settings will be saved. You are now back in the operating menu.

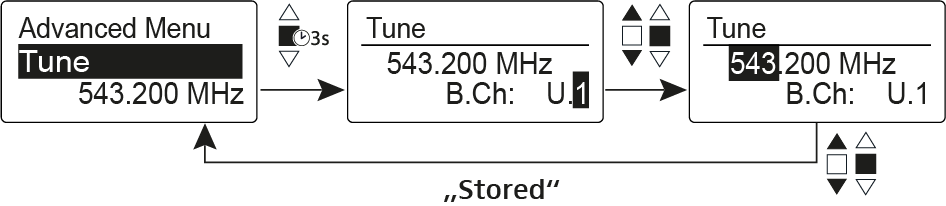

To select a channel and assign it a frequency:

Move the multi-function switch until the Tune menu item appears.
Hold down the multi-function switch until the frequency bank selection appears.
Set the desired channel.
Press the multi-function switch.
The frequency selection appears.
Configure the frequency.
