Deactivating the RF signal (RF mute)

You can temporarily deactivate the RF signal when the microphone is switched on. When the RF signal is deactivated, no audio signal is output.

Use this function to save battery or when you want to prepare a microphone for use during live broadcast without interfering with the current transmission path.

To deactivate the RF signal:

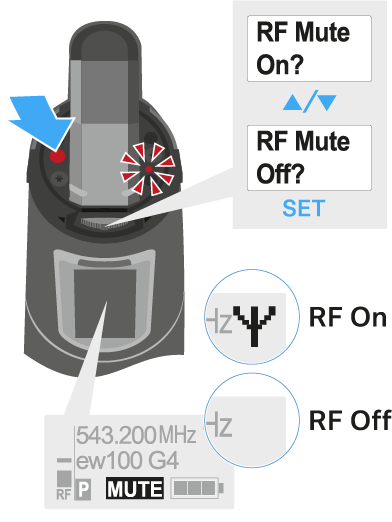

  1. Short-press the ON/OFF button.
    RF Mute On? appears.
  2. Press the SET button.
    The transmission frequency is displayed, however the wireless microphone is not transmitting an RF signal. The transmission icon is not lit (seee Displays on the handheld transmitter display panel).

To activate the RF signal:
  1. Short-press the ON/OFF button.
    RF Mute Off? appears.
  2. Press the SET button.
    The transmission icon appears again (see Displays on the handheld transmitter display panel).
