Connecting a microphone to the bodypack transmitter

You can find a list of recommended Lavalier and headset microphones for the bodypack transmitter under Microphones and cables.

To connect a microphone to the bodypack transmitter:

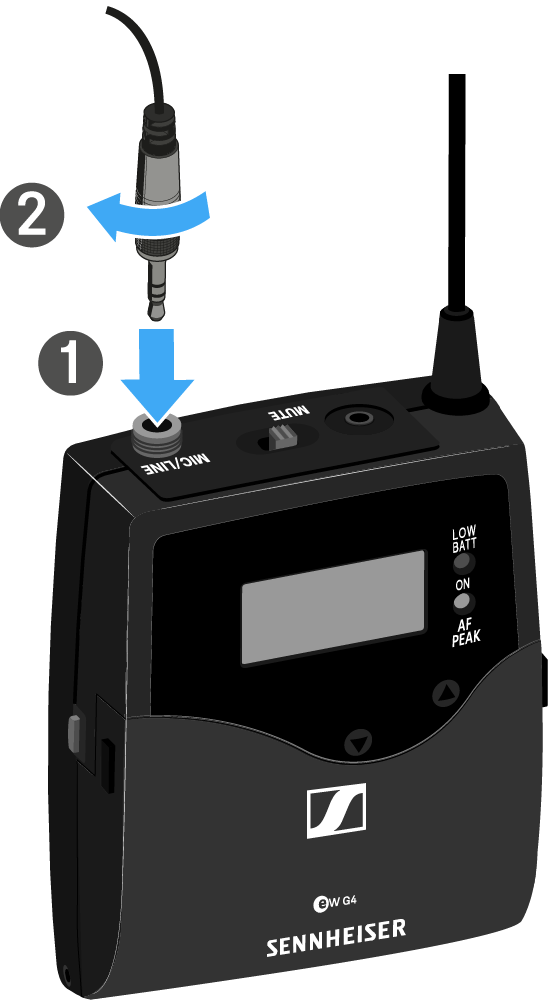

Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the bodypack transmitter as shown in the diagram.
Screw the plug’s coupling ring onto the audio socket thread of the bodypack transmitter.
