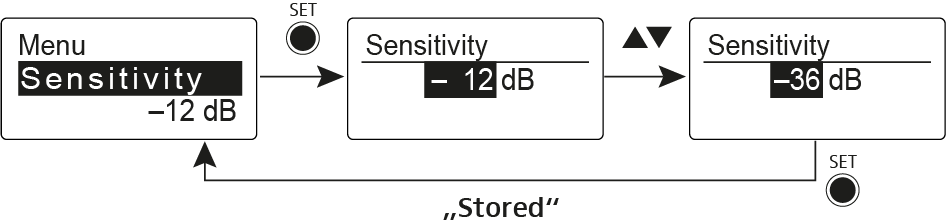

Sensitivity menu item
Adjusting the input sensitivity – AF audio level
Setting range:
- 0 to -60 dB
- in 6 dB steps.
The AF audio level is also displayed when the bodypack transmitter is muted, e.g. to check the sensitivity before a live broadcast.
Recommended presets:
- Loud music/vocals: -30 to -21 dB
- Moderation: -21 to 0 dB
- Electric guitar with single-coil pickups: -30 to -24 dB
- Electric guitar with Humbucker pickups: -45 to -30 dB
- Electric guitars with active electronics: -45 to -30 dB
