Muting the bodypack transmitter (AF mute)

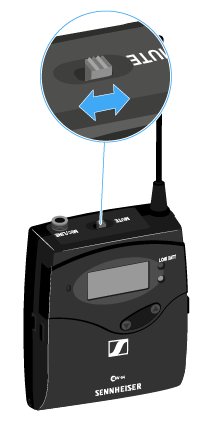

You can deactivate the audio signal with the MUTE switch.

To do this, the MUTE switch function must be configured to AF On/Off. You can find more information about this subject under Advanced > Mute Mode menu item.

Slide the MUTE switch to the MUTE position.

The audio signal is muted. The message MUTE is shown on the display.
