Using the headphone output
You can use the headphone output on the front of the EM 300-500 G4 (6.3 mm jack) to listen to the audio signal.
| CAUTION | |
|---|---|
Danger due to high volume levels
Volume levels that are too high may damage your hearing.
Turn down the volume of the headphone output before you put on the headphone.
Increasing the volume of the audio output AF Out (see AF Out menu item) to more than +18 dB also increases the volume of the headphone output.
| |

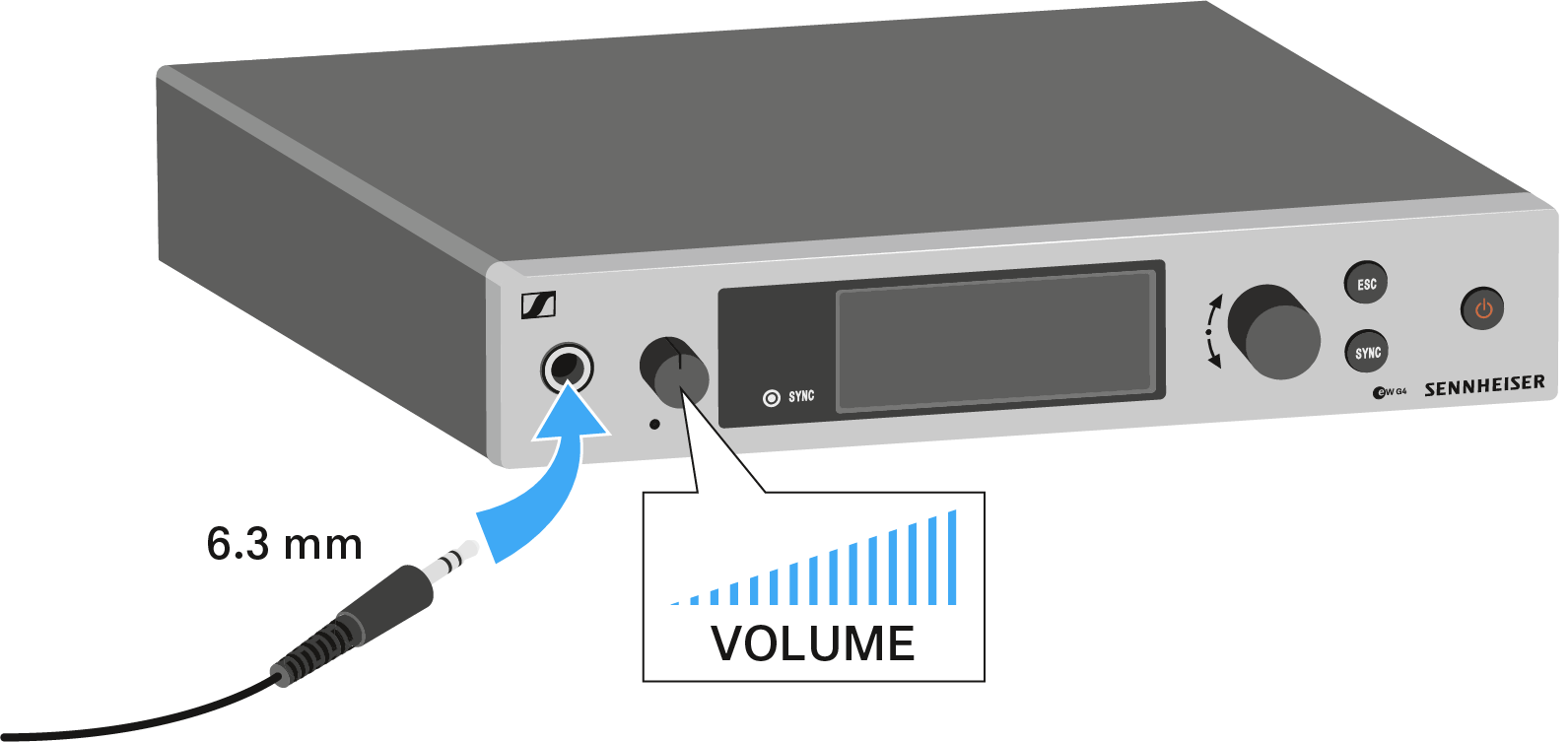

- Connect the headphone to the headphone socket.
-
Control the volume by turning the volume control next to the headphone socket.
