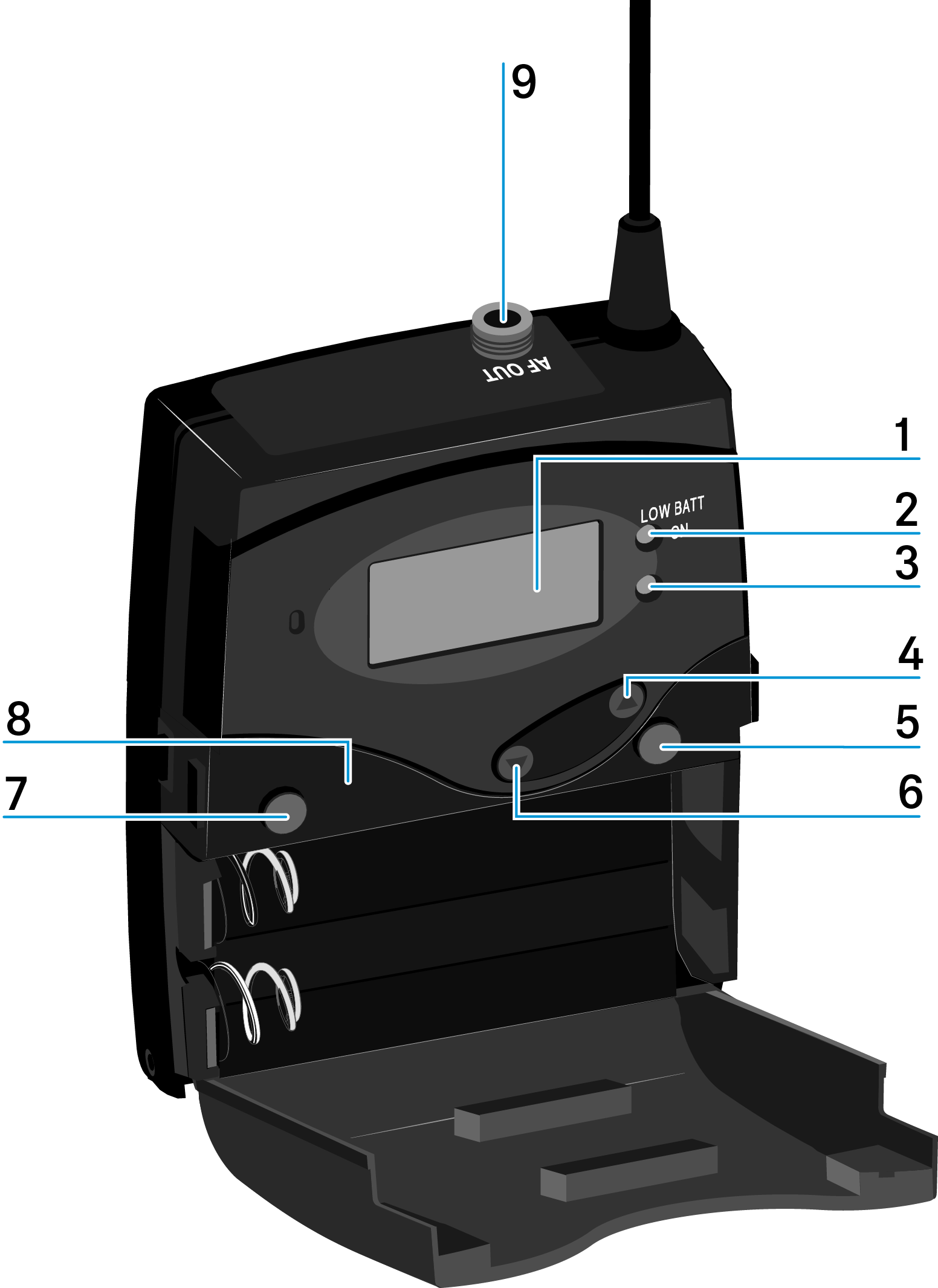

Product overview


1	Display panel see Displays on the EK 500 G4 display panel
2	Operation and battery indicator, red LED illuminated = ON see Switching the diversity receiver on and off flashing = LOW BATTERY see Inserting and removing the batteries/rechargeable batteries
3	Wireless reception indicator, green LED illuminated = RF
4	UP button see Buttons for navigating through the menu
5	SET button see Buttons for navigating through the menu
6	DOWN button see Buttons for navigating through the menu
7	ON/OFF button with ESC function in the operating menu Switch the transmitter on or off see Switching the diversity receiver on and off Escape function in the menu see Buttons for navigating through the menu
8	Infra-red interface see Ew 100 P G4 synchronizing
9	3.5 mm jack socket lockable see Connecting the diversity receiver to a camera
