Advanced -> Tune menu item

In the Tune menu item of the Advanced submenu, you can configure the receiving frequencies for the U frequency bank.

You can save a total of 12 frequencies in the U frequency bank.

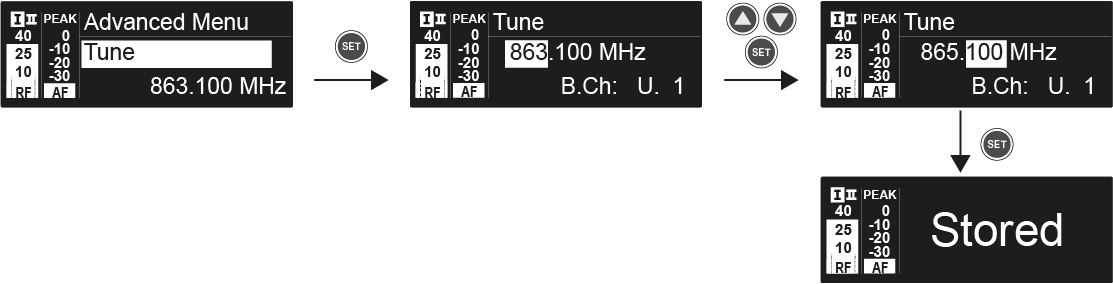

Only adjusting the frequency

Open the Tune menu item in the Advanced menu.
Adjust the settings.
Press the SET button to save the changes you made to the settings.
OR
Press the ESC button to cancel the entry without saving the setting.

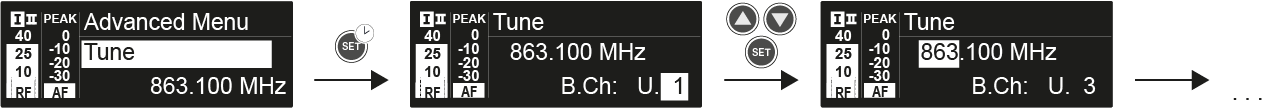

Setting the channel and frequency

Select the Tune menu item and call it up by holding down the SET button until the channel selection appears.
Adjust the settings.
Press the SET button to save the changes you made to the settings.
OR
Press the ESC button to cancel the entry without saving the setting.
