AF Out menu item

In the AF Out menu item, you can set the audio level that is output via the receiver audio outputs.

Setting range:

-24 dB to +18 dB
in 3 dB steps

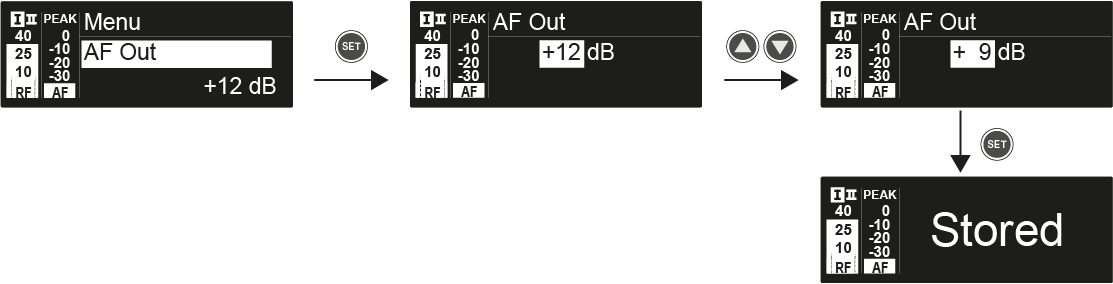

To open the AF Out menu item:

On the home screen, press the SET button to open the operating menu.
Press the UP or DOWN button until the AF Out menu item appears in the selection frame.
Press the SET button to open the menu item.
Adjust the settings as desired.
Press the SET button to save the changes you made to the settings.
OR
Press the ESC button to cancel the entry without saving the setting.
