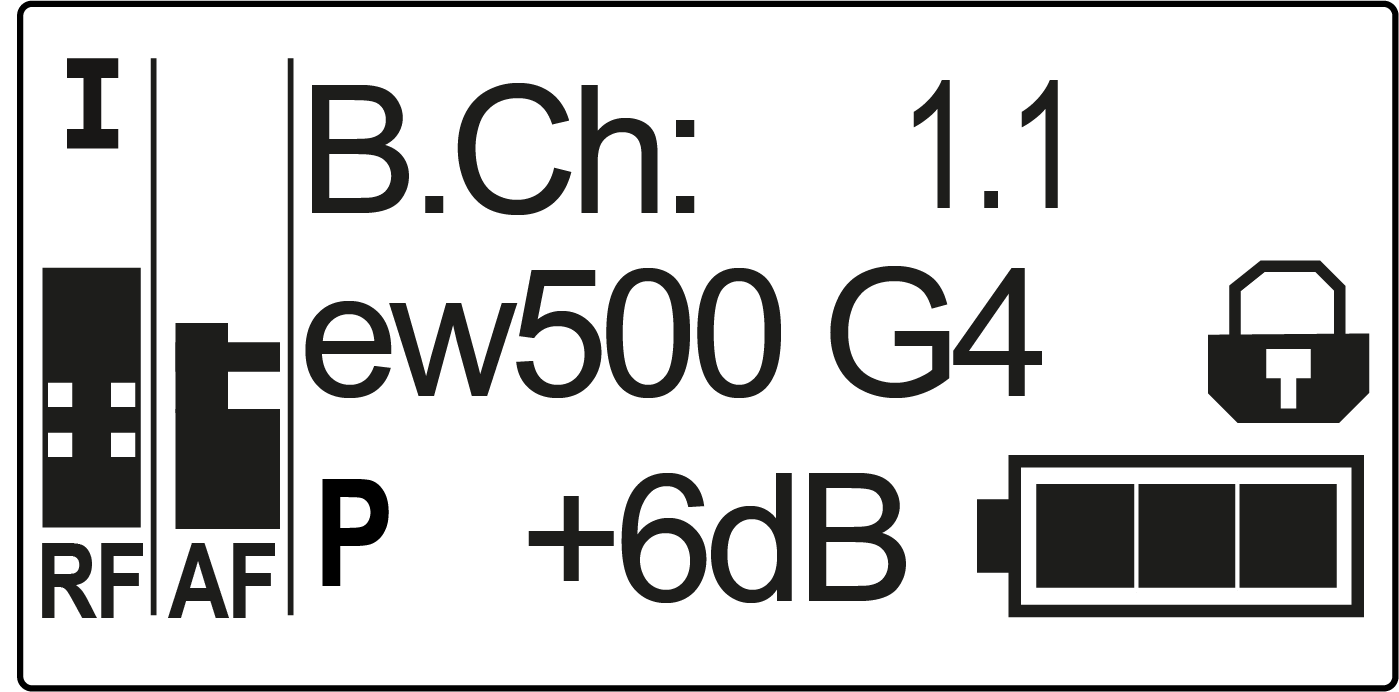

Frequency Bank/Channel/Name standard display

The Frequency Bank/Channel/Name standard display shows the level of the line output AF Out instead of the MUTE muting function.
