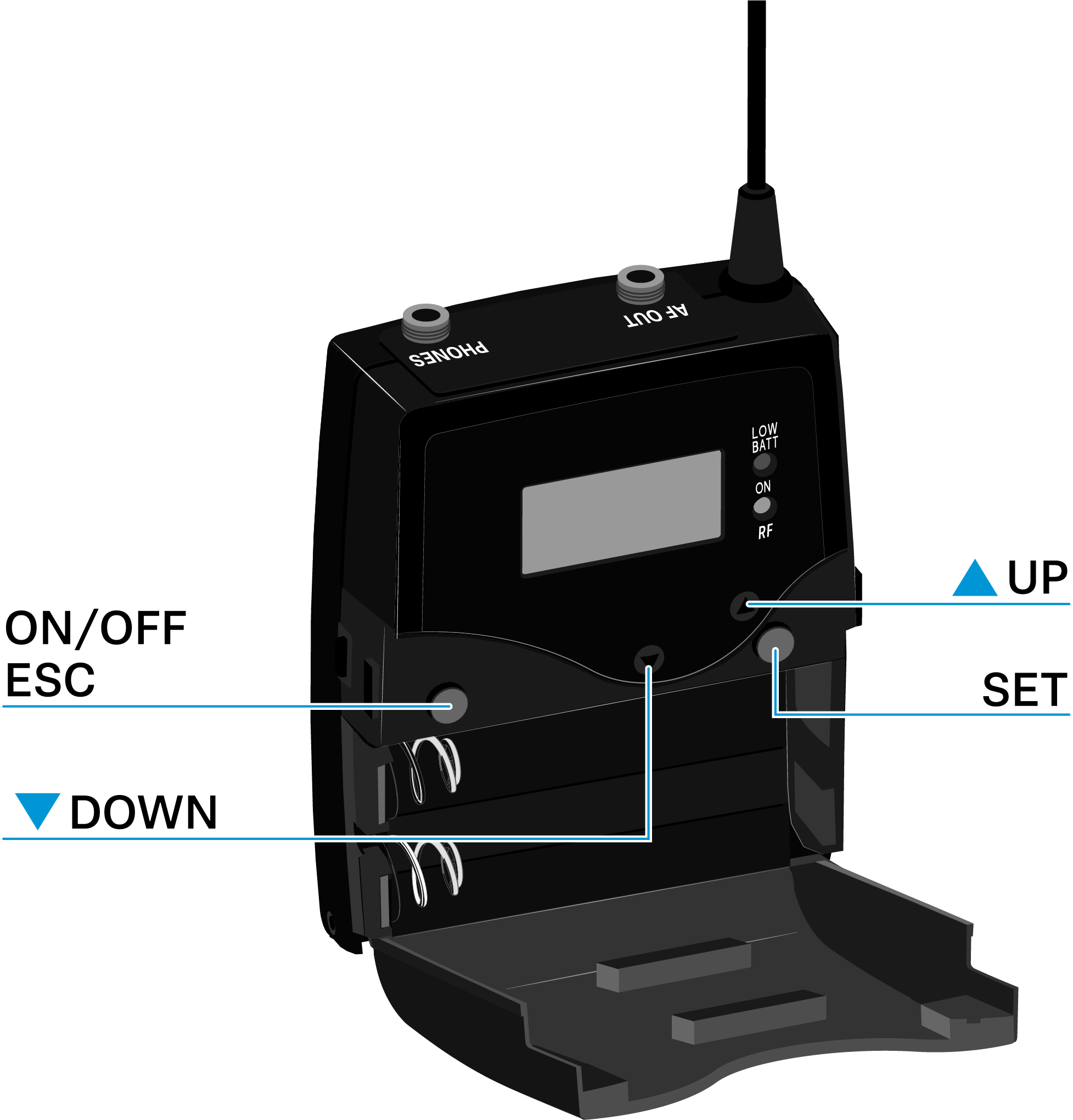

Buttons for navigating through the menu

To navigate through the diversity receiver operating menu, you need the following buttons.



Press the ON/OFF button
  • ESC function: Cancels the entry and returns to the current standard display
  • Selects a standard display (see Home Screen)
Press the SET button
  • Changes from the current standard display to the operating menu
  • Calls up a menu item
  • Changes to a submenu
  • Stores the settings and returns to the operating menu
Press the UP or DOWN button
  • Changes to the previous or next menu item
  • Changes the setting of a menu item
