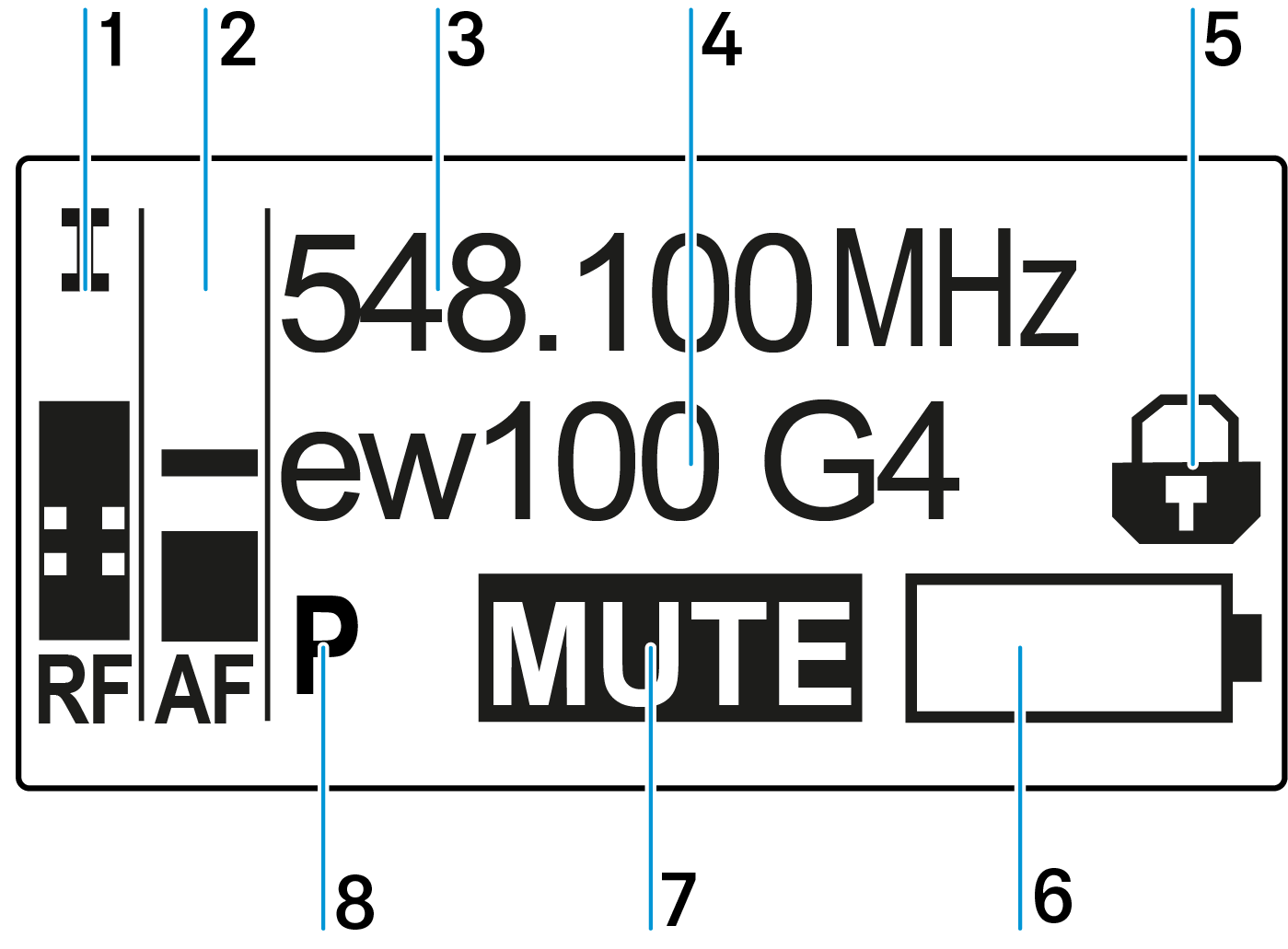

Frequency/Name standard display

1	RF level (radio frequency) RF signal level display including the display of the squelch threshold (see Squelch menu item)
2	AF audio level (audio frequency) Displays the audio level of the received transmitter When the display shows full deflection, the audio input level is excessively high. see AF Out menu item
3	Frequency Current receiving frequency see Frequency Preset menu item
4	Name Freely selectable name of the receiver see Name menu item
5	Lock-off function Lock-off function is activated on the receiver see Lock-off function
6	Battery status of the receiver see Inserting and removing the batteries/rechargeable batteries
7	MUTE muting function No RF signal received
8	P pilot tone P = Activated pilot tone evaluation No symbol = Evaluation is deactivated P is black = Pilot tone is being received on the current frequency see Advanced -> Pilot Tone menu item
