EW-DP SKP plug-on transmitter
MUTE mode

Instruction manual
Starting up and operating devices of the Evolution Wireless Digital series.
- EW-D EM rack receiver
- EW-D SKM-S handheld transmitter
- EW-D SK bodypack transmitter
- EW-DX EM 2 rack receiver
- EW-DX EM 2 Dante rack receiver
- EW-DX EM 4 Dante rack receiver
- EW-DX SKM | EW-DX SKM-S handheld transmitter
- EW-DX SK | EW-DX SK 3-PIN bodypack transmitter
- Table stand EW-DX TS 3-pin | EW-DX TS 5-pin
- EW-DP EK portable receiver
- EW-DP SKP plug-on transmitter
  - Product overview
  - Power supply
  - Using a microSD card
  - Attaching an XLR microphone
  - Connecting a lavalier microphone
  - Switching the plug-on transmitter on and off
  - Starting/stopping recording
  - Activating/deactivating the low-cut filter
    The low-cut filter reduces or removes low frequencies in the audio signal while allowing high frequencies to pass through. This allows low-frequency ambient noise to be filtered out of the audio signal, thereby improving the clarity of the recording.
  - MUTE mode
  - Meaning of the LEDs
- Establishing a radio link | Synchronizing the receiver and transmitter
- L 70 USB charger
- CHG 70N-C charger
  The CHG 70N-C is a network enabled charger featuring two individual charging bays.
- EW-D ASA antenna splitter
- AWM active directional antenna
- Cleaning and maintenance
  Note the following information when cleaning and maintaining products of the Evolution Wireless Digital series.

MUTE mode

You can mute the plug-on transmitter by turning off the audio signal using the MUTE switch.

Note: If you activate the MUTE switch while recording, the recording continues and is not muted, even though the MUTE switch was activated.

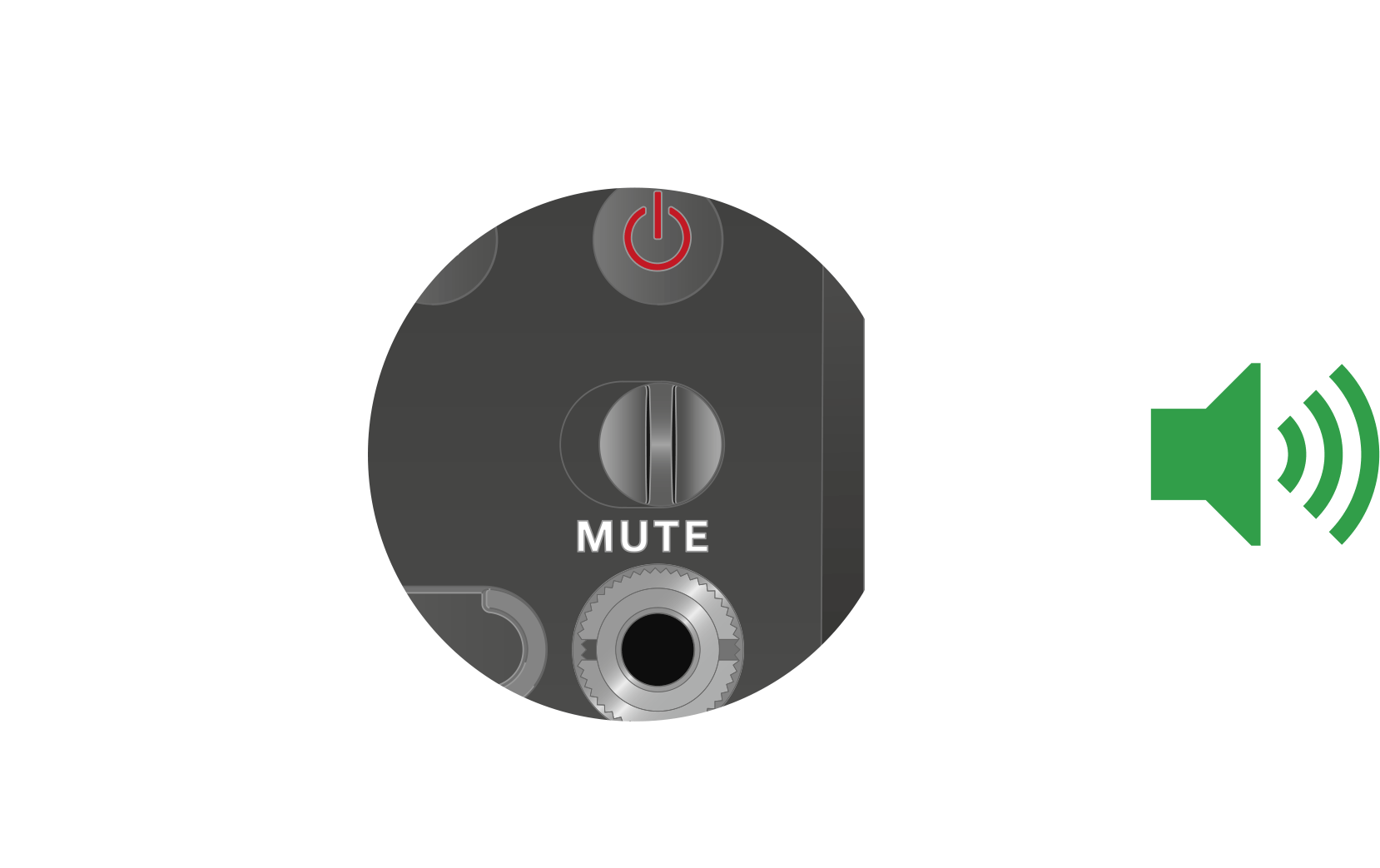

Slide the MUTE switch to the desired position to mute or activate the audio signal.
