Attaching an XLR microphone

To attach an XLR microphone to the EW-DP SKP:

Connect the XLR microphone to the XLR connector of the plug-on transmitter.
Secure the microphone using the knurled screw.

The EW-DP SKP features an unbalanced input.
If the microphone you are using isn't working, please check whether it uses a different pin configuration. In this case, we recommend using a polarity reverser.

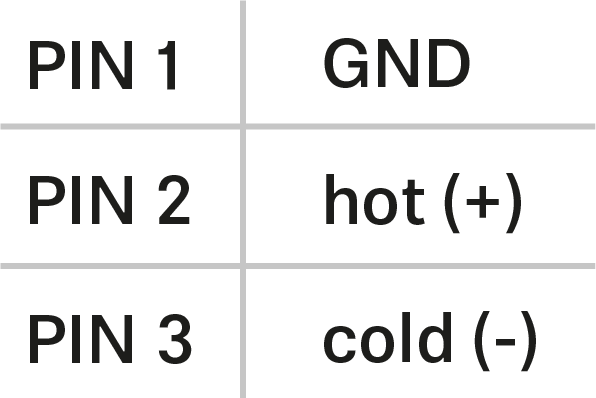

Pin assignment:
