Installation

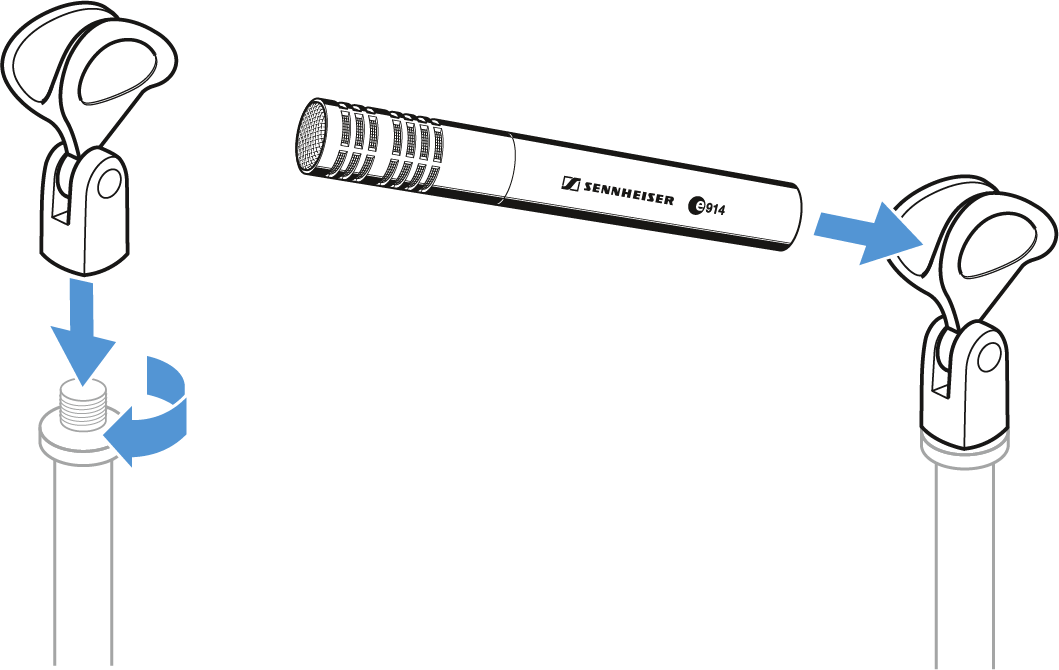

Attaching the microphone

Screw the microphone clamp to a stand.
Place the microphone with its back end into the microphone clamp.
Orient the microphone together with the microphone clamp.

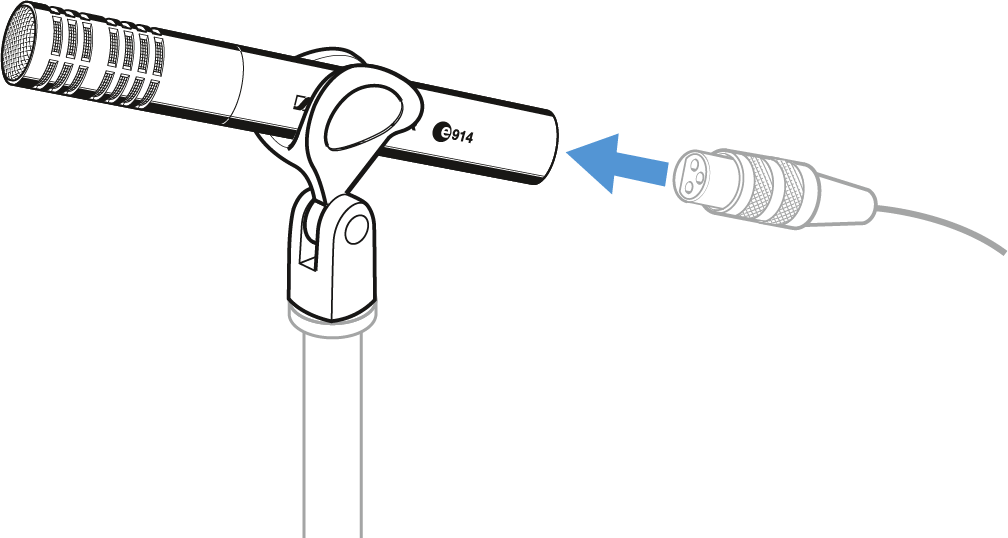

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

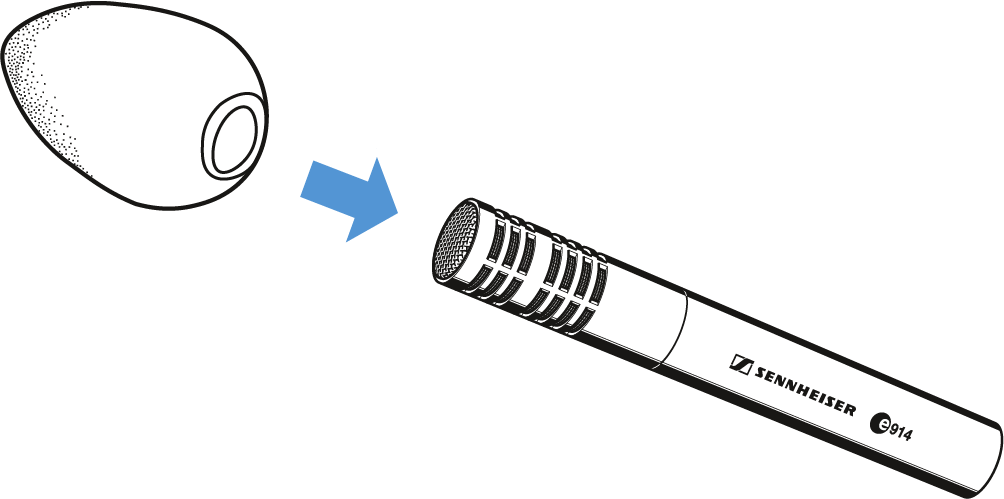

Using the windshield

Place the MZW 64 (optional accessories) windshield over the microphone head.
