e 902
Operation

Instruction manual
Starting up and operating devices of the evolution wired series.
- e 602 II
- e 604
- e 608
- e 609
- e 614
- e 825-S
- e 835 | e 835-S | e 835-S-PTT
- e 845 | e 845-S
- e 865 | e 865-S
- e 901
- e 902
- e 904
- e 906
- e 908
- e 914
- e 935
- e 945
- e 965
- MZA 900 P
- Cleaning and maintenance
  Note the following information when cleaning and maintaining evolution wired series products.

Operation

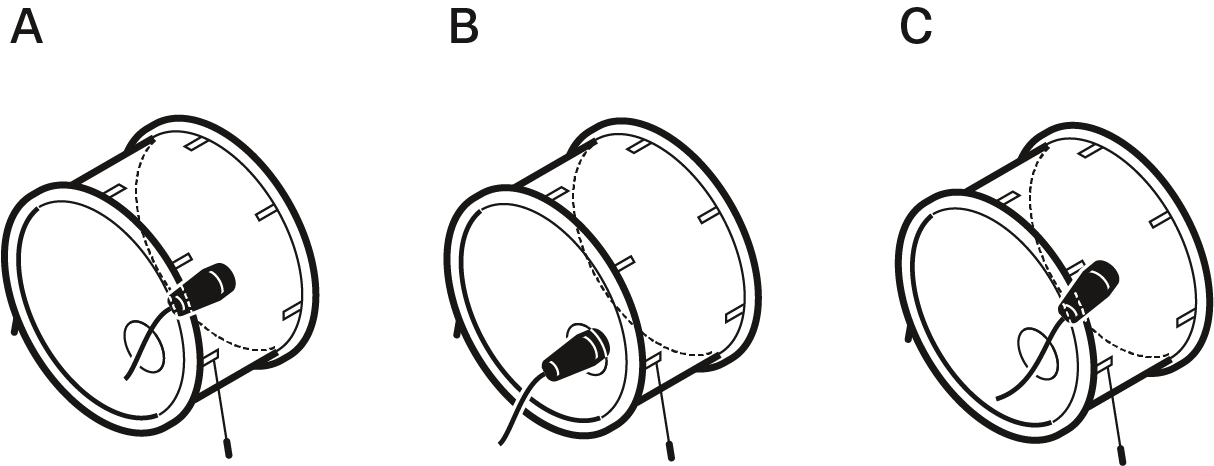

Positioning the microphone on a kick drum

Use the integral stand mount to attach the microphone.
It is vital to observe the following notes:
- Position A: Position the microphone at a distance of a few centimeters from the batter head.
  - Resulting sound: much attack; little resonance; dry
- Position B: Position the microphone at the level of the resonant head.
  - Resulting sound: less attack; much resonance; smooth and voluminous
- Position C: Position the microphone in the middle between the batter head and the resonant head.
  - Resulting sound: less Attack

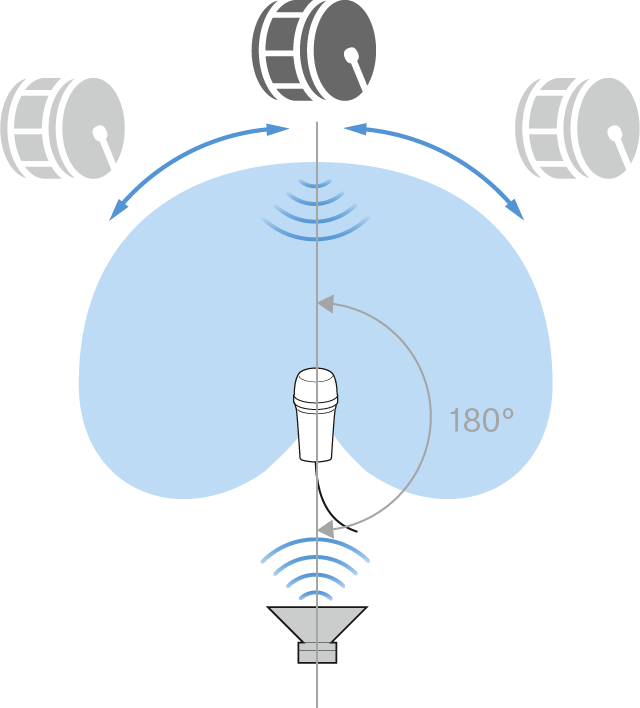

Positioning the monitor loudspeakers

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 180°).
