Starting up and operating devices of the evolution wired series.
e 825-S
Installation

Instruction manual
Starting up and operating devices of the evolution wired series.
- e 602 II
- e 604
- e 608
- e 609
- e 614
- e 825-S
- e 835 | e 835-S | e 835-S-PTT
- e 845 | e 845-S
- e 865 | e 865-S
- e 901
- e 902
- e 904
- e 906
- e 908
- e 914
- e 935
- e 945
- e 965
- MZA 900 P
- Cleaning and maintenance
  Note the following information when cleaning and maintaining evolution wired series products.

Installation

Attaching the microphone

Screw the microphone clamp to a stand.
Place the microphone with its back end into the microphone clamp.
Orient the microphone together with the microphone clamp.

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

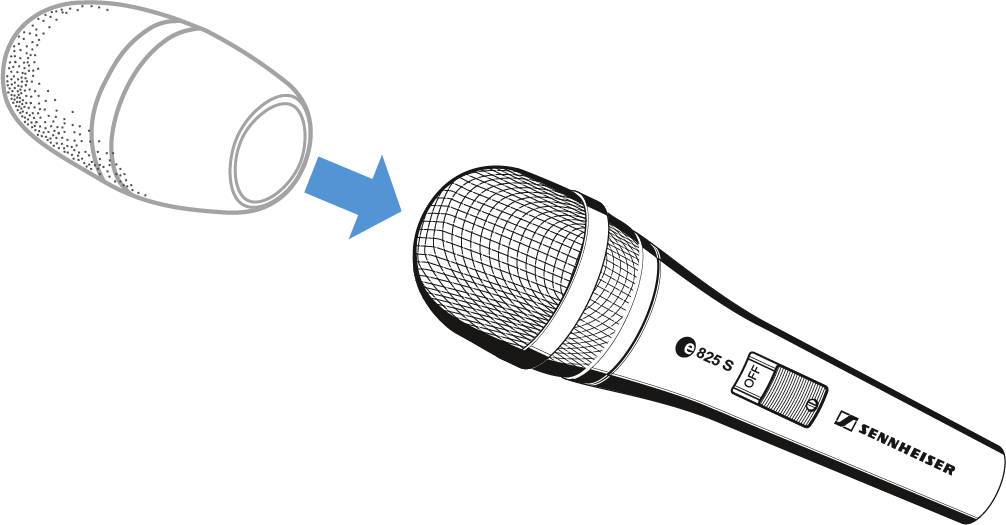

Using the windshield

Place the MZW 4032 (optional accessories) windshield over the microphone head.
