Operation

Positioning the microphone: Drums / Percussions

Attention: When closing the hi-hat, a strong air current is created on the edge. If the microphone is positioned too close to the edge, interfering noise due to the air current can occur.

It is vital to observe the following notes:
Position the microphone a few centimetres above the outer edge of the hi-hat aiming down.
If necessary, remove unwanted low-frequency signal portions by high pass filtering.
- Position A: natural, clear sound
- Position B: more fundamental, little overtones

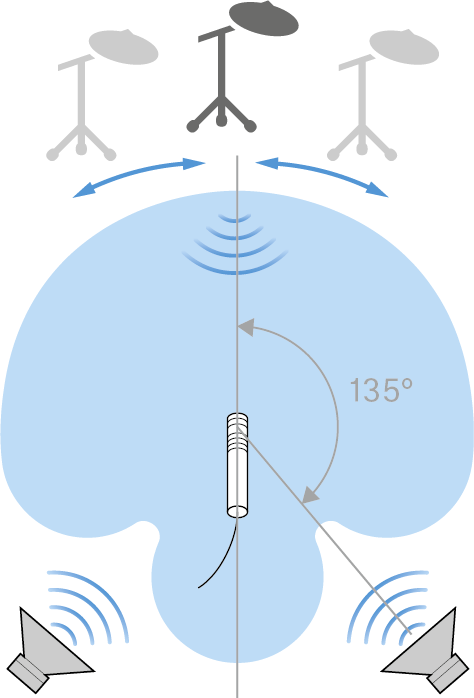

Positioning the monitor loudspeakers

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 135°, see Polar pattern).
