Starting up and operating devices of the evolution wired series.
e 604
Installation

Instruction manual
Starting up and operating devices of the evolution wired series.
- e 602 II
- e 604
- e 608
- e 609
- e 614
- e 825-S
- e 835 | e 835-S | e 835-S-PTT
- e 845 | e 845-S
- e 865 | e 865-S
- e 901
- e 902
- e 904
- e 906
- e 908
- e 914
- e 935
- e 945
- e 965
- MZA 900 P
- Cleaning and maintenance
  Note the following information when cleaning and maintaining evolution wired series products.

Installation

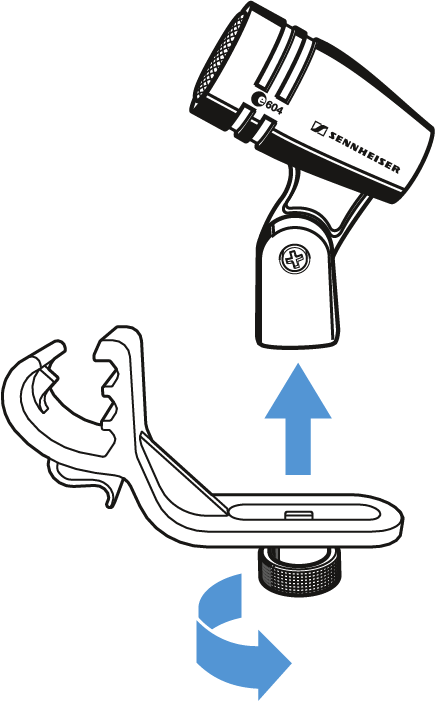

Attaching the microphone

Fasten the holder to the microphone using the screw.

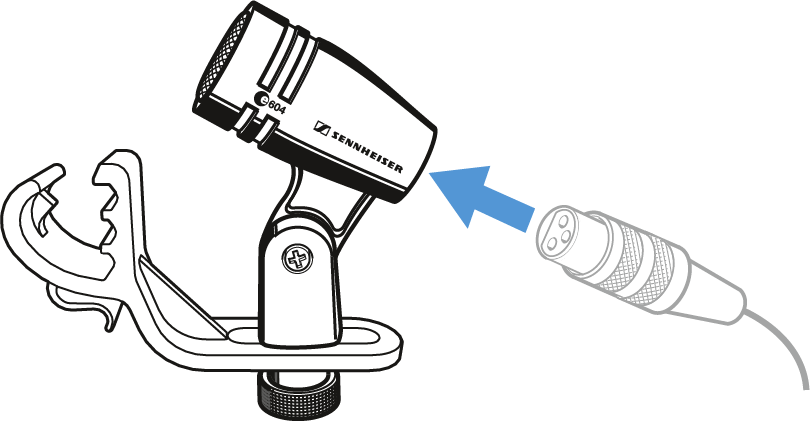

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.
