Installation

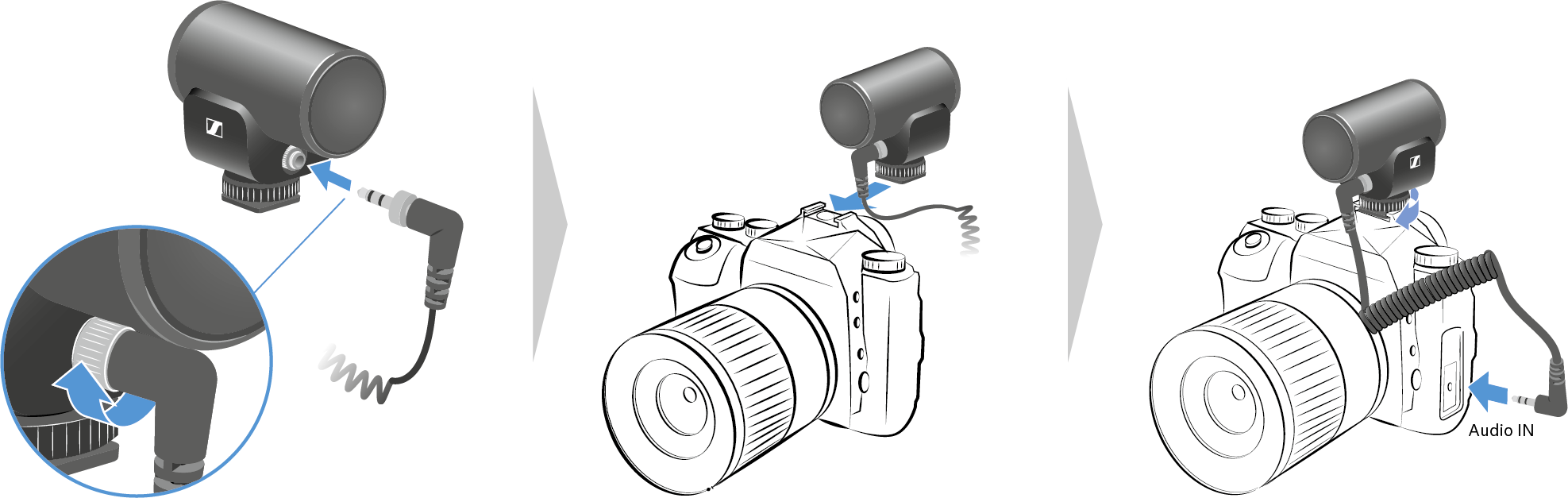

To connect the microphone to the camera:
  1. Insert the screwable plug of the camera cable into the microphone’s socket and tighten the plug.
  2. Slide the microphone into the camera’s hot shoe and tighten the knurled wheel.
  3. Insert the other plug of the camera cable into the Audio IN jack on the camera.

    The microphone is on when the camera is switched on.

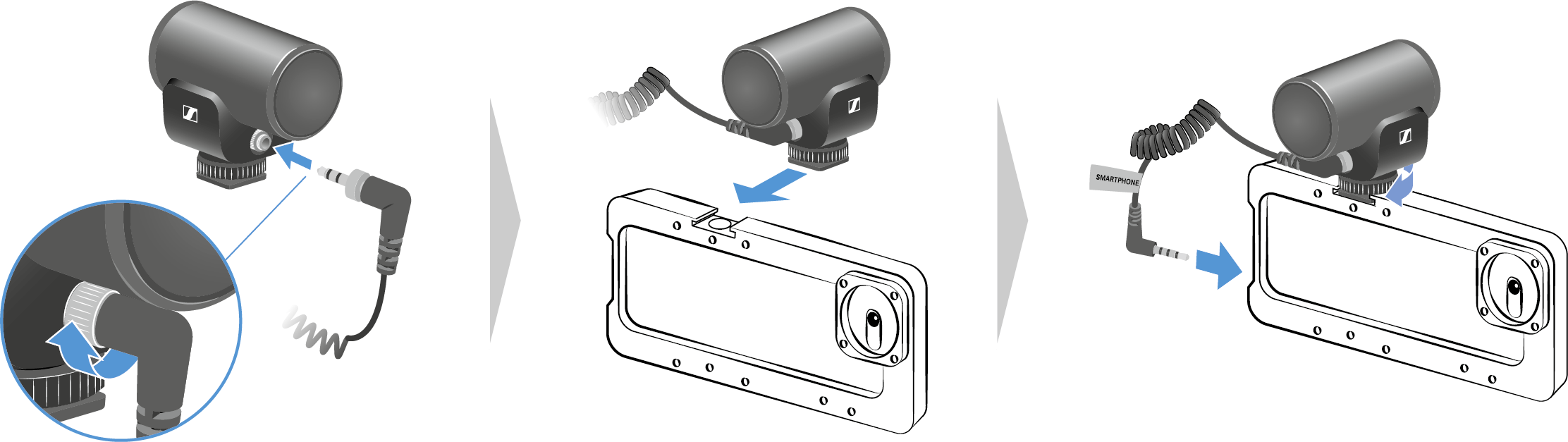

To connect the microphone to a mobile phone:
  1. Insert the screwable plug of the mobile phone cable into the microphone’s socket and tighten the plug.
  2. Slide the microphone into the slot of the mobile phone holder and tighten the knurled wheel.
  3. Insert the other plug of the mobile phone cable into the smartphone’s jack.

  4. We recommend that you set the mobile phone to flight mode.
