Removing/inserting the accupack BA 30

You can power the bodypack transmitter with the supplied BA 30 accupack. The accupack must be charged before first time use. The accupack can remain in the bodypack transmitter for charging.

Note:
Before using the bodypack transmitter for the first time, remove the protective foil from its accupack.
To remove the accupack from the bodypack transmitter:
  1. Simultaneously press the two catches and pull the accupack away from the bodypack transmitter.
  2. Remove the protective foil.

To insert the accupack into the bodypack transmitter:

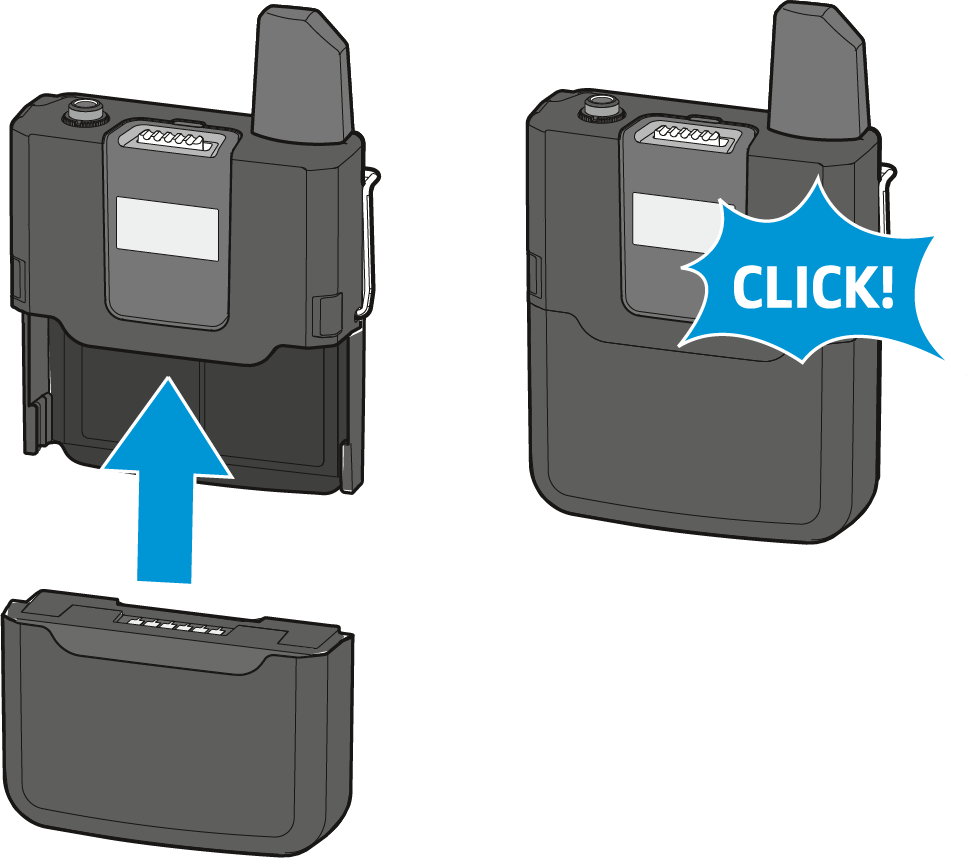

  1. Slide the accupack onto the bodypack transmitter as shown.
    The accupack locks into place with an audible click.
