Checking the RF signal level

The quality of the RF signal is shown on the display panel of the transmitter.

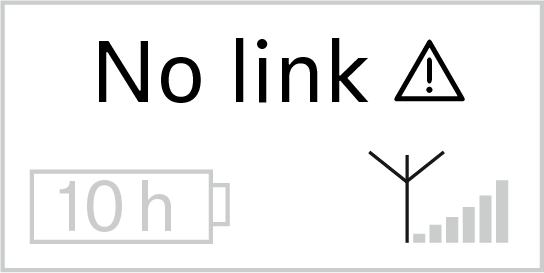

If no RF signal is being transmitted, e.g. because the receiver is switched off or out of range, all segments of the RF signal level display are grayed out. In addition, No Link is displayed on the display panel.
