Attaching the receiver using the belt clip

You can use the belt clip to attach the receiver to e.g. a belt or to the camera bag.

Proceed as follows:

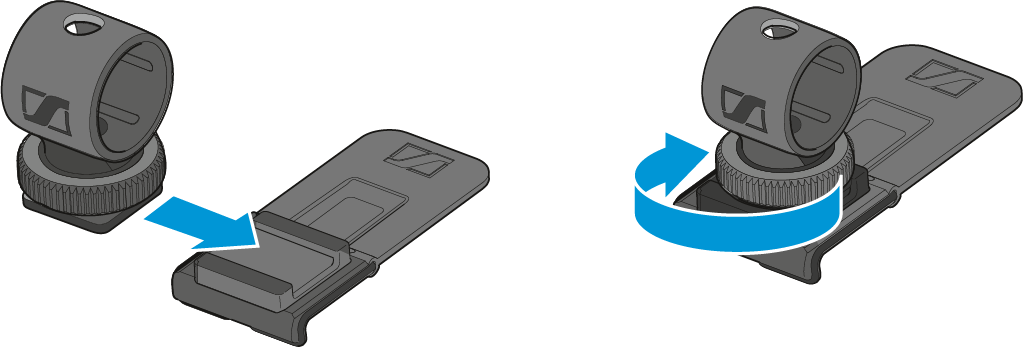

  1. Slide the hot shoe adapter onto the belt clip.
  2. Fasten the hot shoe adapter to the belt clip using the locking screw.

  3. Plug the receiver‘s rotatable XLR-3 connector into the hot shoe adapter.

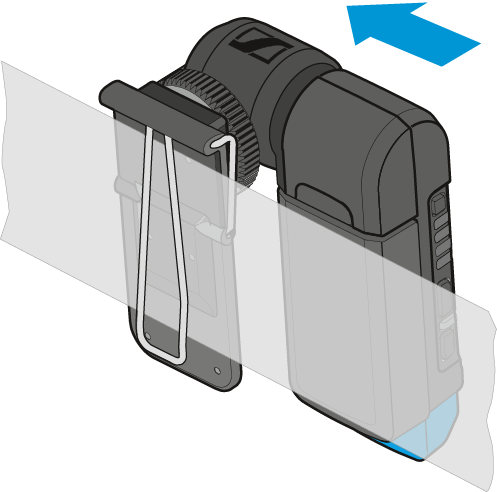

  4. Use the belt clip to attach the receiver to a camera bag or a belt.
