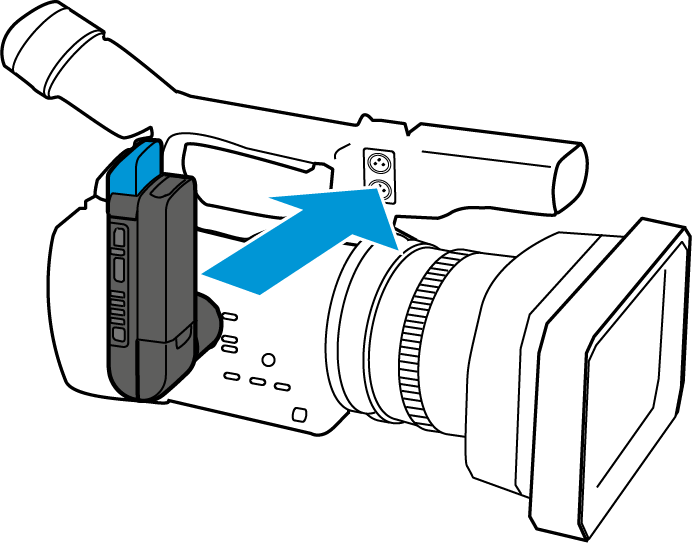

Mounting the receiver to a video camera

To mount the receiver to a video camera, proceed as follows:

  1. Plug the receiver‘s rotatable XLR connector into the camera‘s XLR-3 audio input.
    If the video camera has an XLR-3 audio input with P48 phantom power, the receiver is automatically switched on and off together with the video camera – provided that the phantom power is automatically switched on and off together with the camera.
  2. Rotate the receiver into position, making sure that it does not disturb during filming and that there is – preferably – a direct line of sight to the transmitter.
