Starting up and operating devices of the AVX series.
EKP AVX receiver
Checking the charge status of the accupacks

Checking the charge status of the accupacks

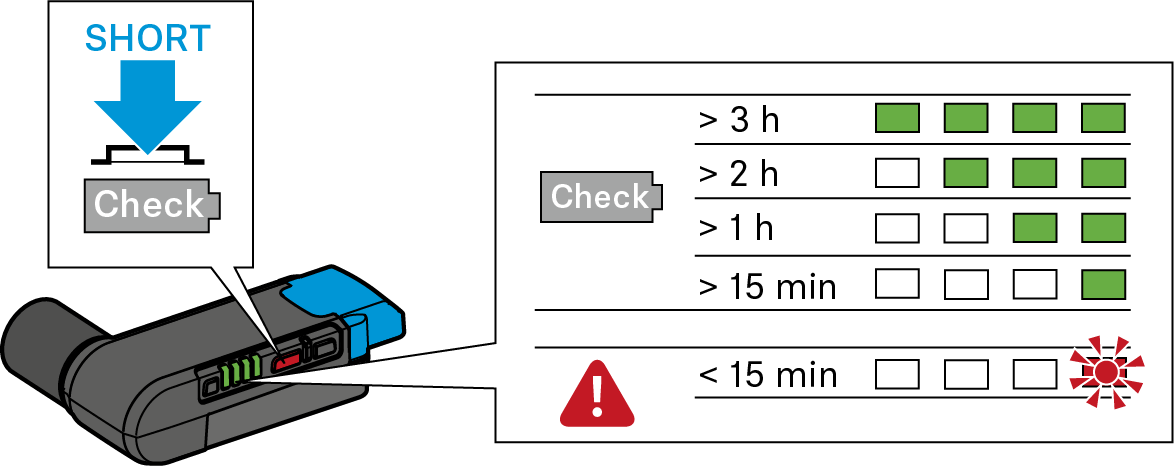

To display the expected remaining battery life of the BA 20 accupack in the receiver:

Short-press the On/Off/Check button.

The 4-step LED display lights up green to indicate the expected remaining battery life.

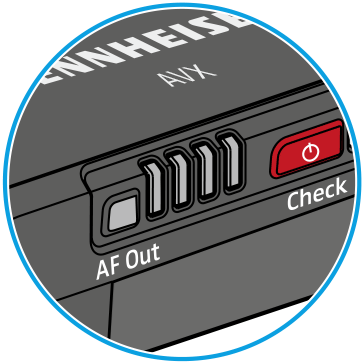

When the right LED of the 4-step LED display flashes red – regardless of whether the On/Off/Check button has been pressed –, the capacity of the BA 20 accupack is only sufficient for less than 15 minutes of operation.
