Coordination

Coordinating intermodulation-free frequencies

The “Coordination” tab allows the calculation and coordination of intermodulation-free frequencies that are suitable for the prespecified frequency conditions.

The coordination depends on the following parameters:

  • Devices set in the “Devices” tab
  • Settings made in the “System regions”, “Frequencies/Bands” and “Spare groups” tabs
Starting the coordination
  1. Make sure that the “Devices” tab contains device data (either self entered or automatically read in).
  2. Check if all the desired settings have been made in the “System regions”, “Frequencies/Bands” and “Spare groups” tabs.
  3. In the upper window area of the “Coordination” tab, click on “Start coordination”.
    The coordination of intermodulation-free frequencies starts.
  • The coordination results are displayed on the left hand side 1 of the upper window area and are continuously updated.
  • The header 2 of the “Coordination” tab displays the number of coordination results. This information remains visible even when you change to another tab.

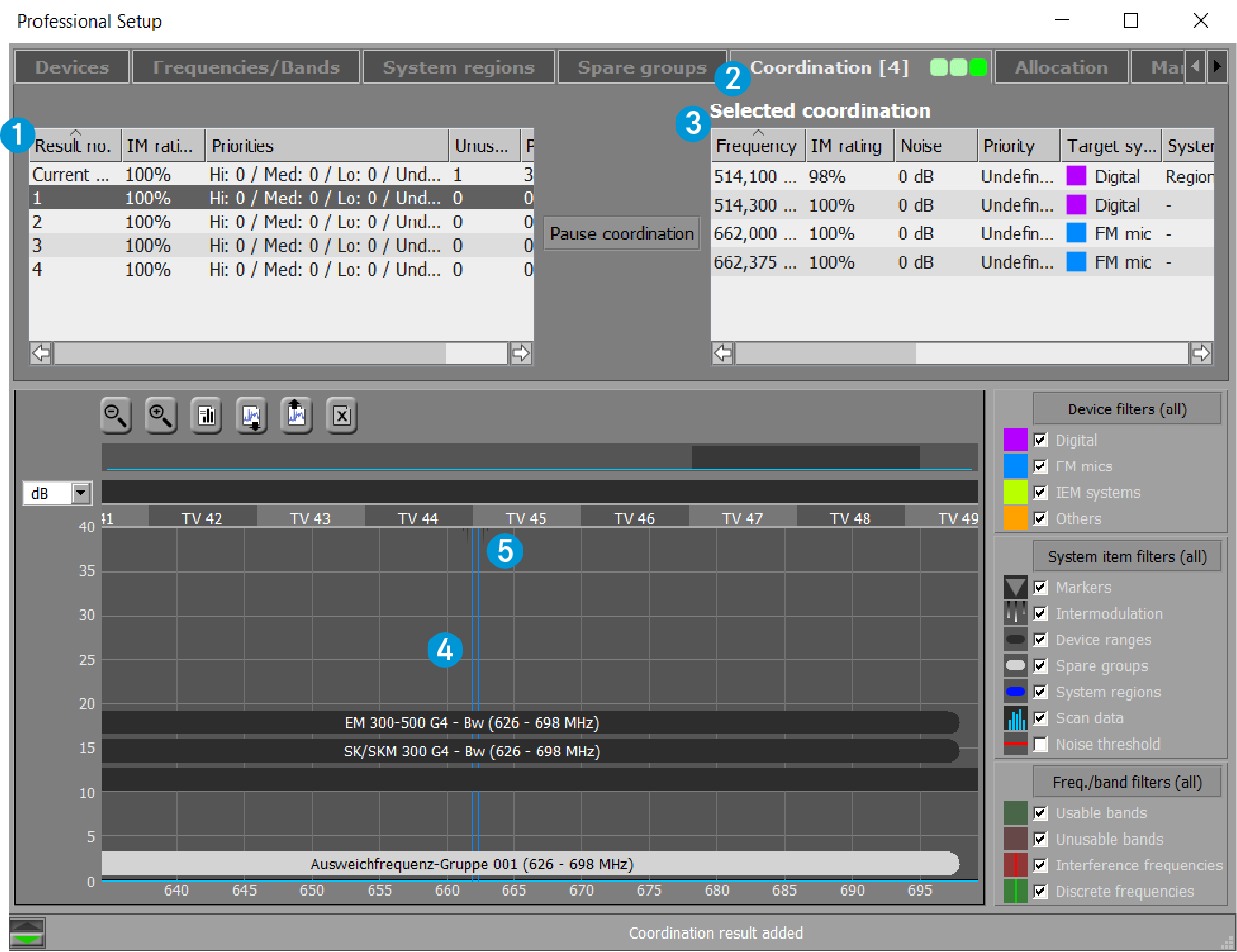

  • If you select a coordination result, the coordinated frequencies are displayed in the “Selected coordination” box 3 on the right hand side of the upper window area and are also shown as solid, colored lines 4 in the graphical overview.
  • In addition, the calculated intermodulation products 5 are displayed.
