Home
Product information
All information about the product and available accessories at a glance.
Application scenarios
The TeamConnect Bar (TC Bar) is an all-in-one conference system for small to medium-sized meeting rooms.

Product information
All information about the product and available accessories at a glance.
- Application scenarios
  The TeamConnect Bar (TC Bar) is an all-in-one conference system for small to medium-sized meeting rooms.
- Mounting options
  This chapter provides you with an overview of the available options for mounting the TC Bar.
- Connectivity
  The TC Bar features numerous connections and connection interfaces.
- Operating modes
  The TC Bar can be used either as a stand-alone solution in the meeting room or as a networked conference system in an existing network structure.
- Control software
  The TC Bar can be operated and managed through multiple Sennheiser control applications.
- Network configuration
  You can configure different network modes for the TC Bar using the control application and thus adapt the device to the existing network structure.
- Dante® features for TC Bar S and M
  With the built-in Dante Embedded Platform (DEP), the TC Bar integrates media and control of your entire AV system over a single IP network.
- Enhanced audio and video coverage
  The TC Bar is an audio and video conference system that can be used not only as an independent stand-alone solution but also as a unit in a networked system via the Sennheiser control application.
- Status information about energy consumption
  According to the ecological design requirements of Directive 2009/125/EC on products relevant to energy consumption, the TC Bar complies with the following standard(s) or document(s): Commission Regulation (EU) 2023/826.
- Third-party access
  You can enable third-party access in the control application to operate the TC Bar via an API.
- Licenses
  All valid licenses for the product TeamConnect Bar.

Application scenarios

The TeamConnect Bar (TC Bar) is an all-in-one conference system for small to medium-sized meeting rooms.

The device can either be operated as an independent conference system at a workstation or as a networked conference system in a meeting room (see Operating modes). Enhanced microphones and/or a second PTZ camera can be added to the TC Bar using the integrated Dante® interface (see Enhanced audio and video coverage).

Depending on the size of the room, different models can be used for video and audio transmission:

TC Bar S: up to 14m²
TC Bar M: up to 27m²

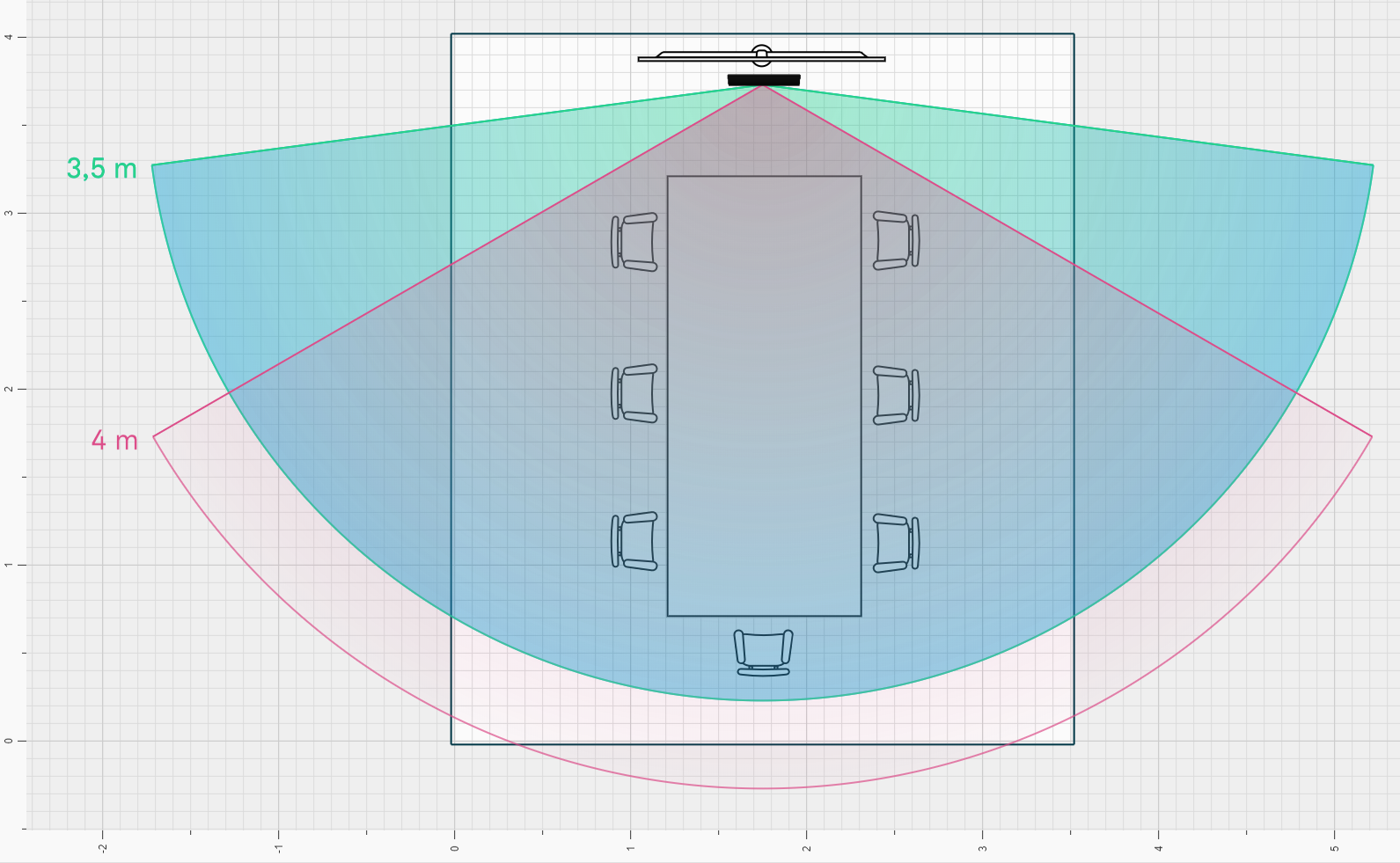

TC Bar S

The TC Bar S is designed for small meeting rooms (3 m x 4.5 m (10 ft x 15 ft)) with a maximum of 7 people. The camera records people present in the room at a distance of up to 4 m (13 ft). The beamforming microphones reliably record speakers at a distance of up to 4 m (Ø 13 ft).

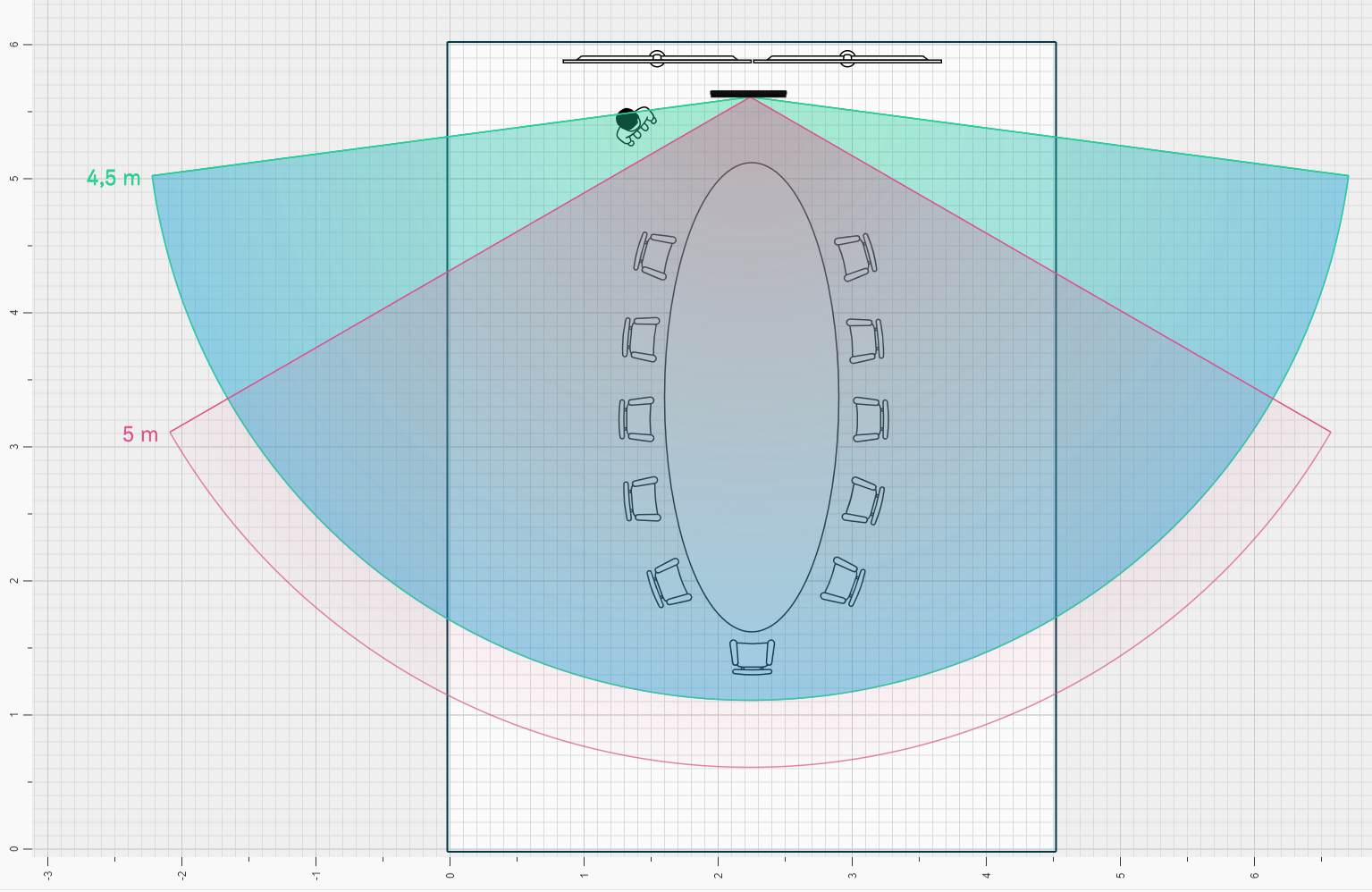

TC Bar M

The TC Bar M is designed for medium-sized meeting rooms (4.5 m x 6 m (15 ft x 20 ft)) with a maximum of 10-12 people. The camera records people present in the room at a distance of up to 5 m (16 ft). The beamforming microphones reliably record speakers at a distance of up to 5 m (Ø 16 ft).
