Muting internal TC Bar microphone

Use the remote control or your control software to mute or unmute the internal microphone.

Muting the microphone can also be activated or deactivated using the system settings of the operating system and/or conference system in use (e.g., MS Teams, Zoom, etc.).

Muting the TC Bar

To mute the internal microphone of the TC Bar

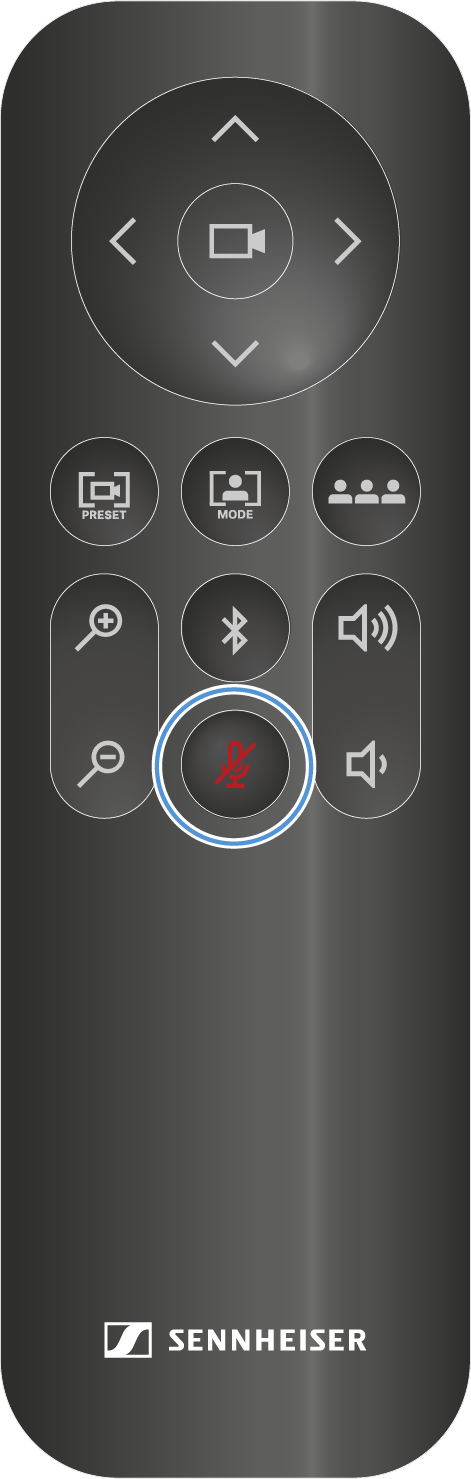

- Briefly push the mute button on the remote control or
- Navigate to Devices > TC Bar > Audio in the Control Cockpit and activate the setting Internal Mic Mute.

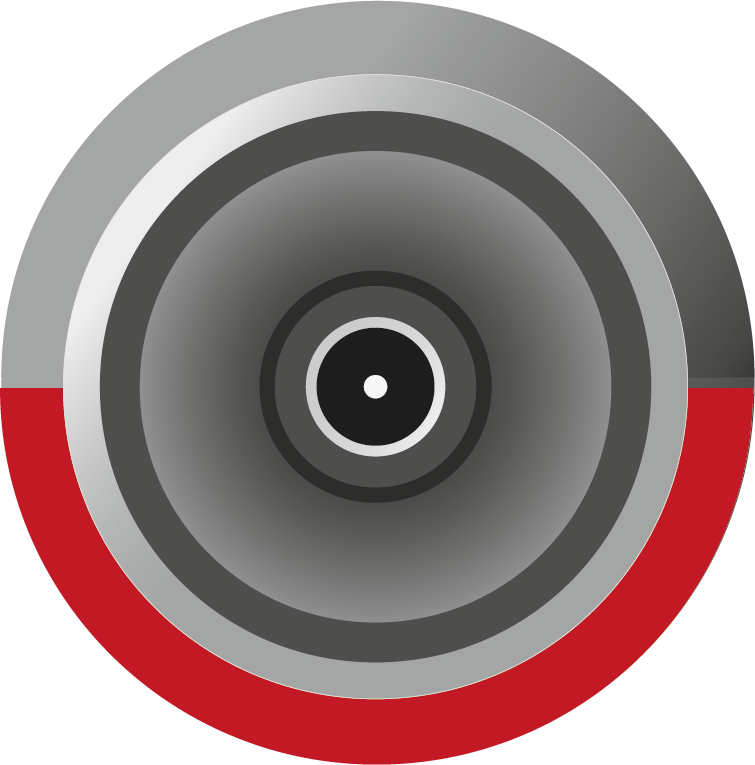

The lower LED for audio settings shines red. Muting is activated.

Stop muting:

Stop the muting by doing the following:
- Briefly push the mute button on the remote control or
- Navigate to Devices > TC Bar > Audio in the Control Cockpit and deactivate the setting Internal Mic Mute.

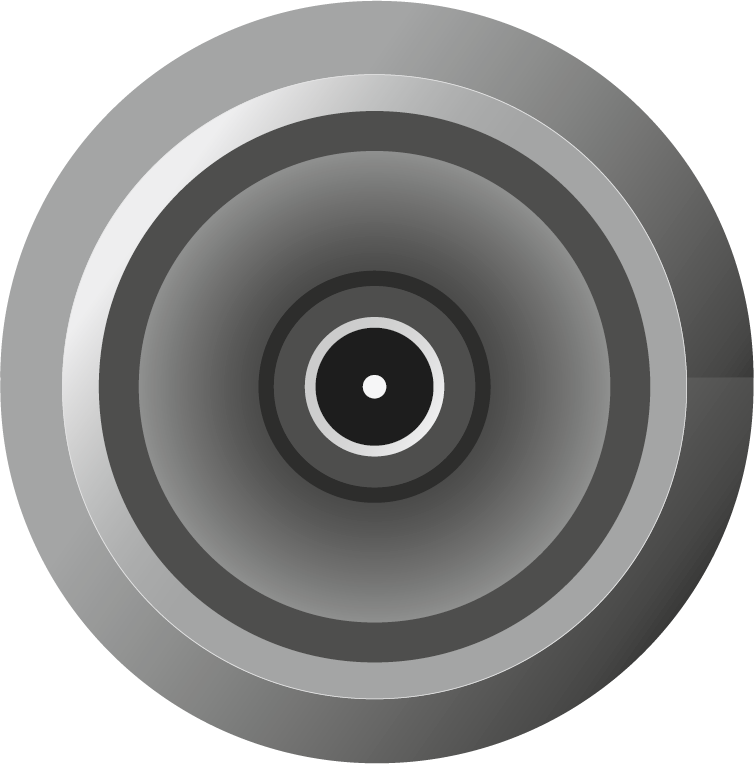

The red LED goes out. The audio output is no longer muted.

The TC Bar has been muted.
