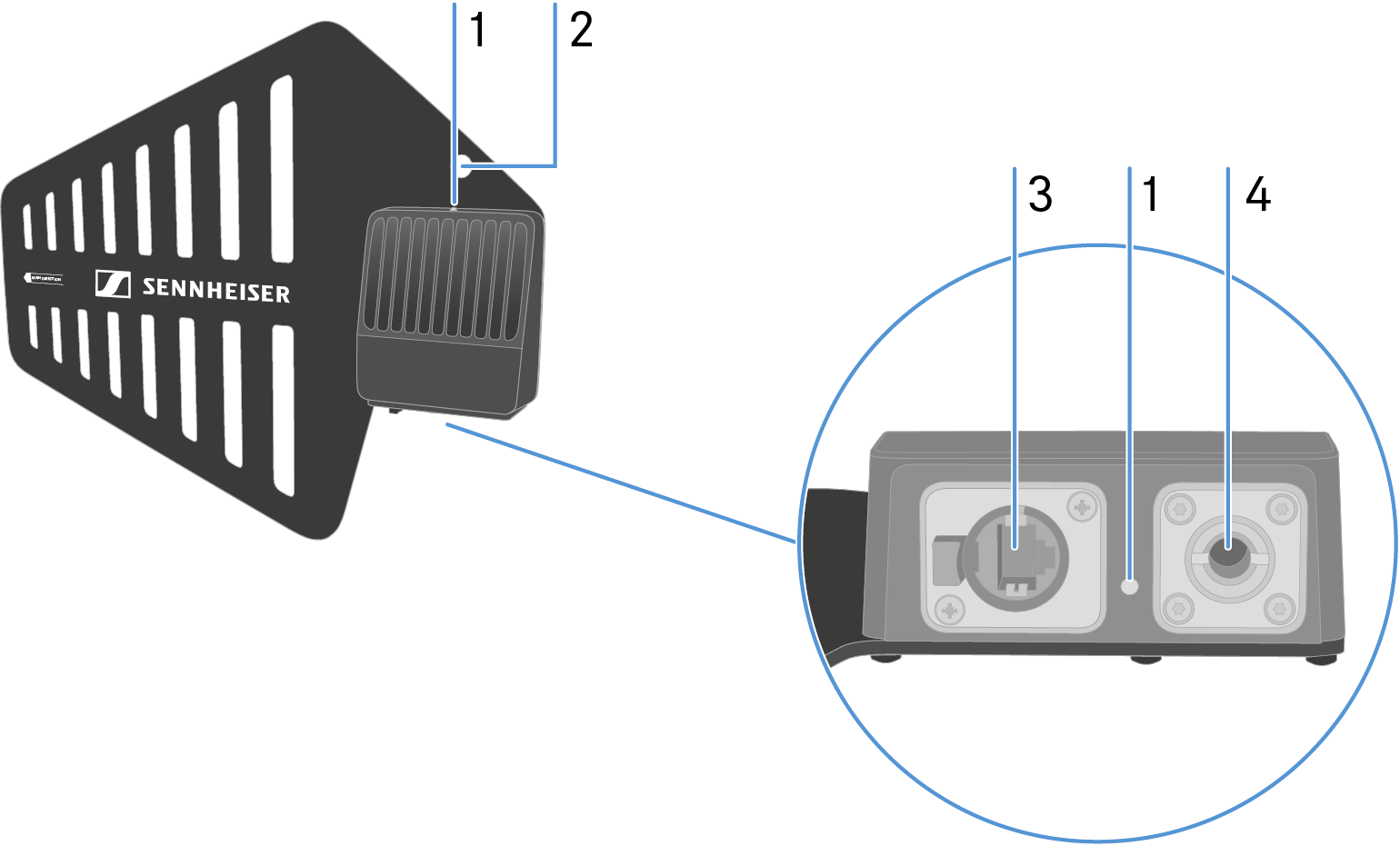

Product overview

1 LED to indicate the status: see Meaning of the LED
2 Hole for rigging safety cable
3 Ruggedized RJ45: see Connecting/disconnecting the antenna
4 Microphone stand: see Information on antenna setup
