Changing the microphone position (left/right)

You can wear the microphone on either the left or right side.

The neckband has a total of five clips which are designed so that the microphone boom can be worn on either side of the mouth.

NOTICE

Damage to the microphone boom

The microphone boom can break or be impaired in its function when you bend or turn it. Frequent alternate bendings close to the microphone capsule can also damage the microphone boom and possibly reduce the adjustability of the microphone.

Only adjust the microphone boom as described in this chapter.

To remove the microphone boom:

First remove the microphone boom from the two clips 1 and 2.
Turn the microphone boom to remove it from the third clip 3.

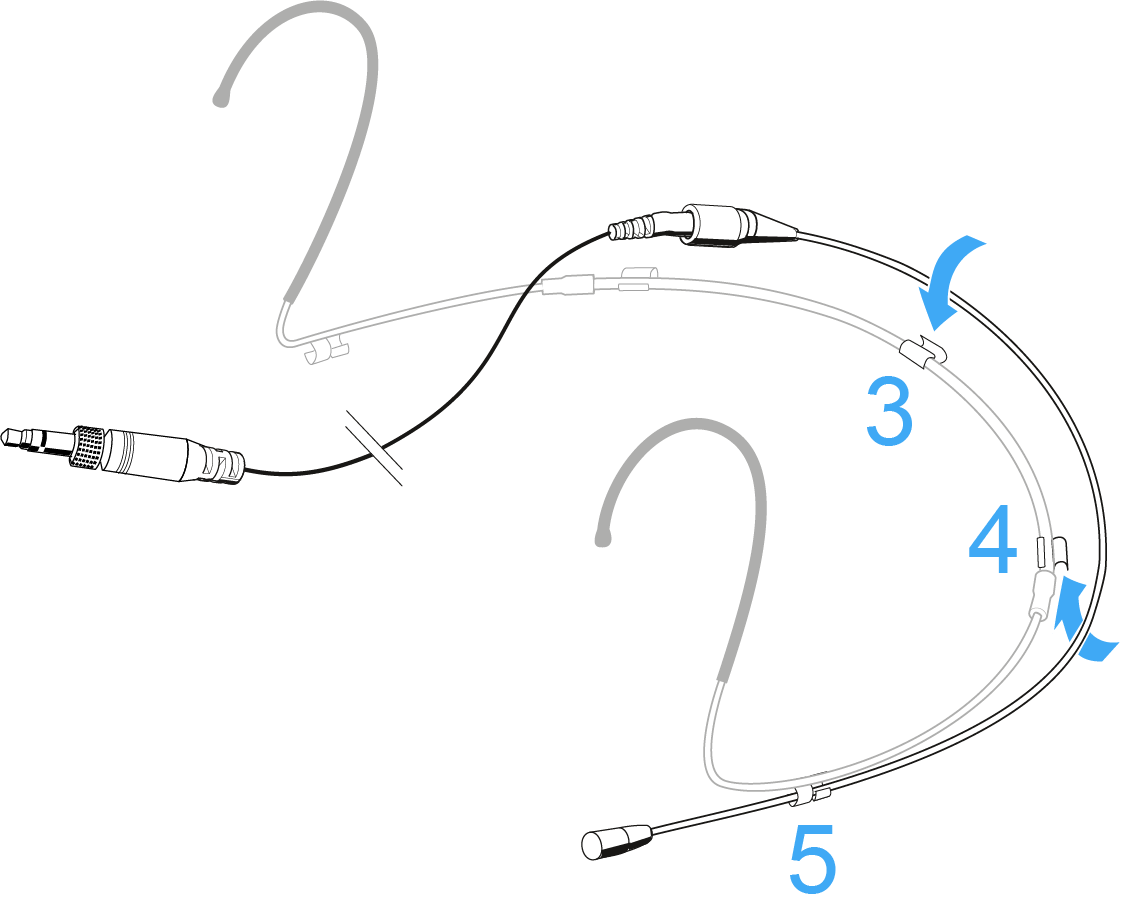

To reattach the microphone boom:

First attach the end of the microphone boom where the microphone capsule is fitted to the clip 5 on the desired side of the neckband.
Press the microphone boom into the two clips 3 and 4.
