Device overview

Overview of the devices and their controls

Charging bar (CB)

Model: PWCB

1 Hinged compartment with three adaptors: USB-C, lightning and hot shoe
2 Slots for two transmitters (TX)
3 Magnets for securing the transmitters and threads for attaching a tripod
4 Slots for the receiver (RX)

Receiver (RX)

Model: PWRX

1 Touch display
2 USB-C connector / adaptor
3 USB-C connector
4 3.5 mm jack socket for connecting the camera
5 3.5 mm jack socket for headphones
6 ON/OFF button for switching the device on and off

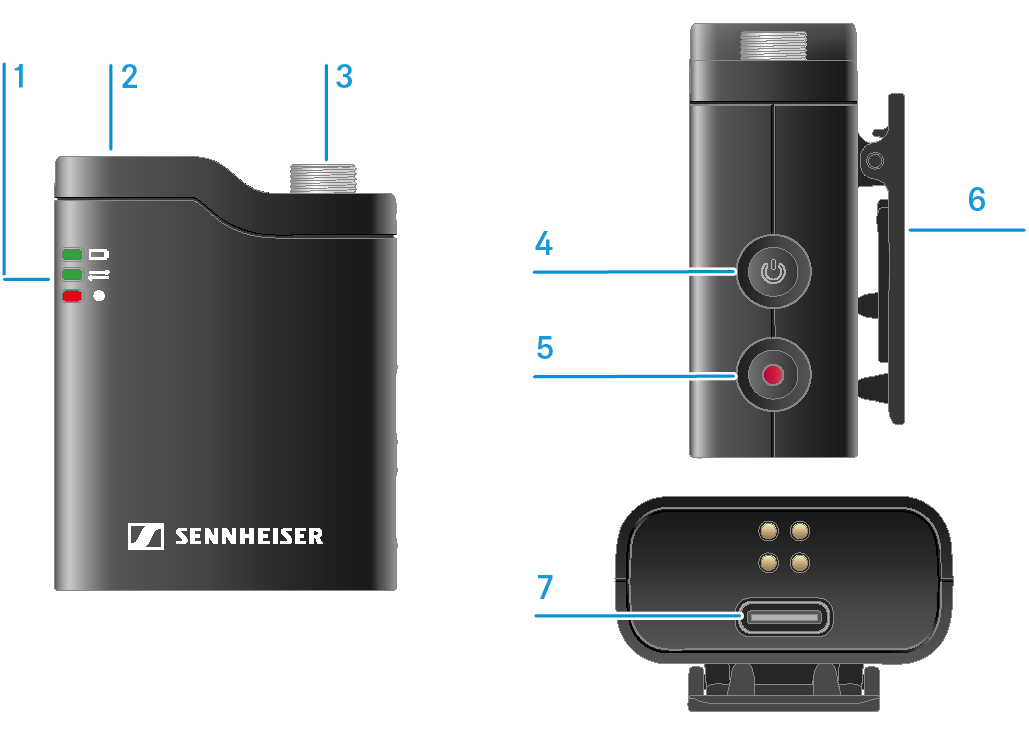

Transmitter (TX)

Model: PWTX

1 LED to display battery status, connection status and recording status
2 Microphone / windshield connector
3 3.5 mm jack socket for TRS microphone
4 ON/OFF button for switching the device on and off
5 REC button for starting and stopping an internal recording
6 Clip fastener
7 USB-C connector
