Starting up

You can retrofit and extend the microphones of the modular MKH 8000 microphone series by using the filter module - except the MKH 8018.

Connecting the filter module

If necessary, disconnect a connected XLR cable in order to not distort the cable and to avoid short-circuits.
Unscrew the microphone head from the XLR module.

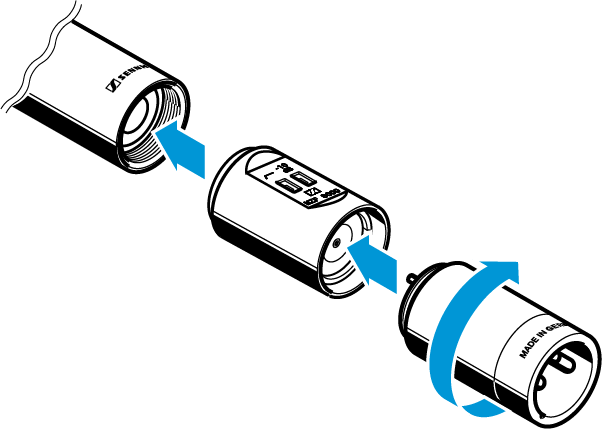

Screw the MZF 8000 II filter module at a suitable place in the audio signal chain between microphone head and XLR module.
