Starting up

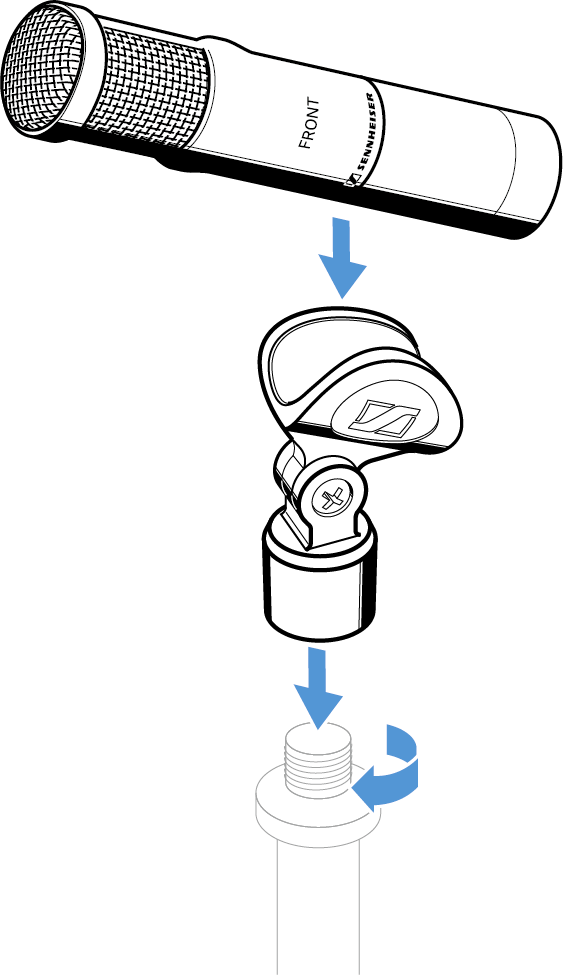

Mounting the microphone

Screw the microphone clamp to a stand.
Place the microphone into the clamp.
Orient the microphone together with the microphone clamp.

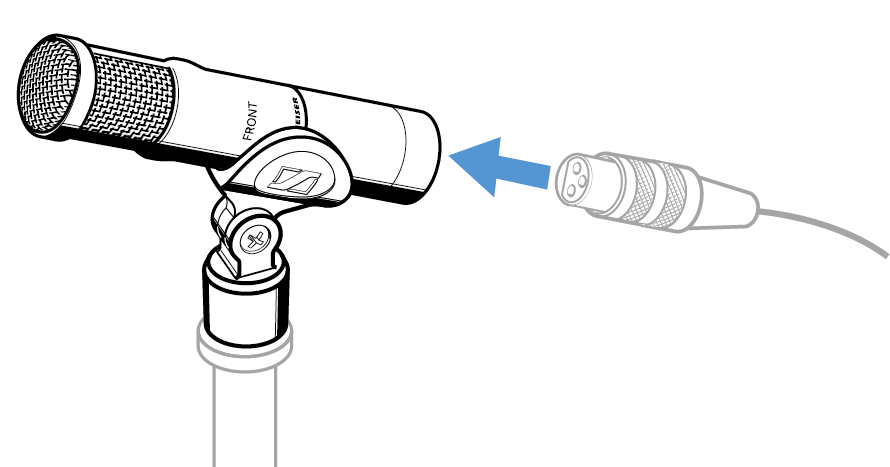

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

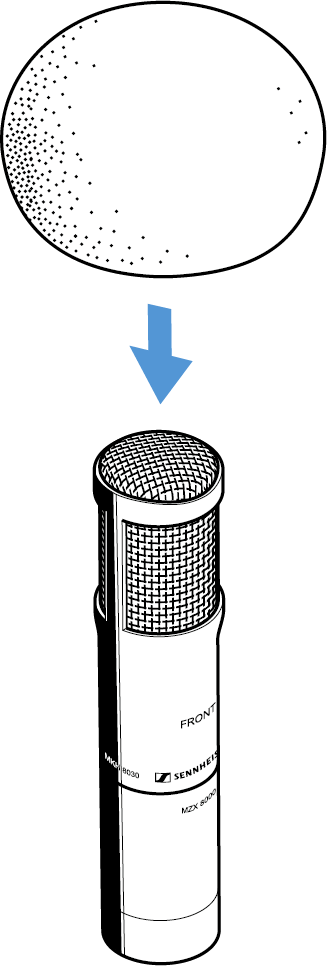

Using the windshield

Note:

The windshield changes the sound only slightly, but attenuates wind noise by approx. 20 dB.

Place the MZW 8030 windshield over the microphone head.
